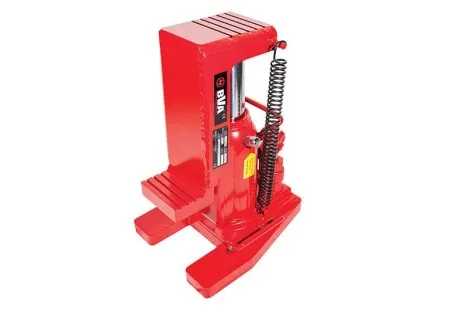

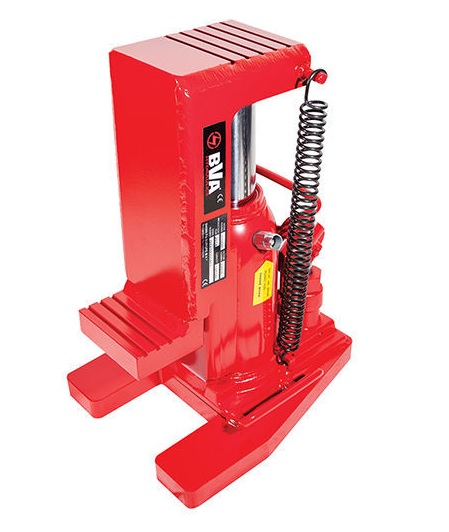

The Steerman BVA Hydraulic Toe Jack - Has now been rebadged (formerly known as STEERMAN HTJ HYDRAULIC TOE JACK). A quality manufactured hydraulic jack with a heavy-duty lifting toe, designed for working in confined spaces when lifting heavy machinery. Other typical uses for this style of hydraulic toe jack is to lift containers off the floor ready for moving skates/systems to be positioned underneath. Also used for Lifting and positioning fabricated steel structures such as pressure vessels and other general engineering applications.
These jacks are an ideal partner for our range of Steerman moving systems and skates. Simple to use and once lifted to the desired height the moving skate can be slid underneath ready for the object to be moved.
Model
| Capacity Via Claw | Capacity Via Head | Closed Height
| Claw Clearance
| Stroke
| Weight
|

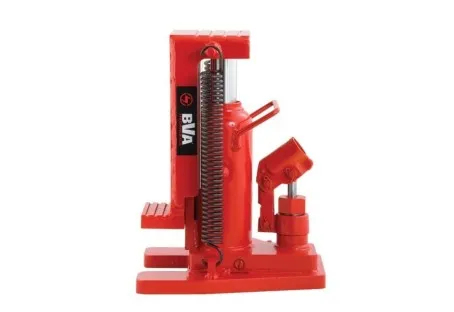

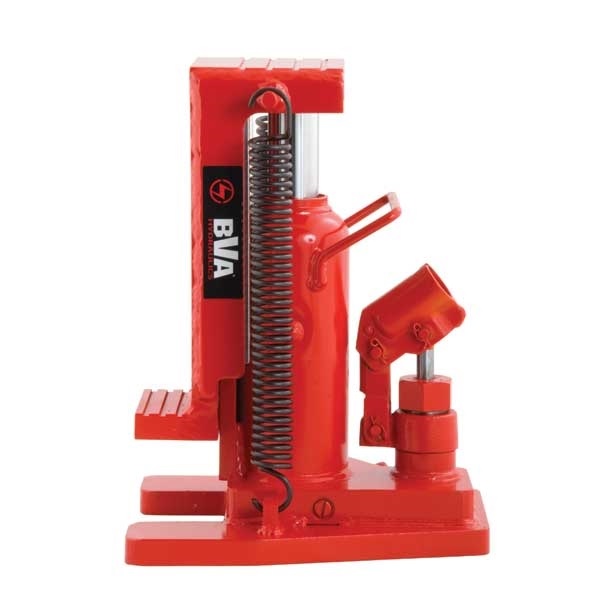

BVA - 3
| 3000Kgs
| 3000Kgs
| 230mm
| 16mm
| 130mm
| 17.8Kgs
|

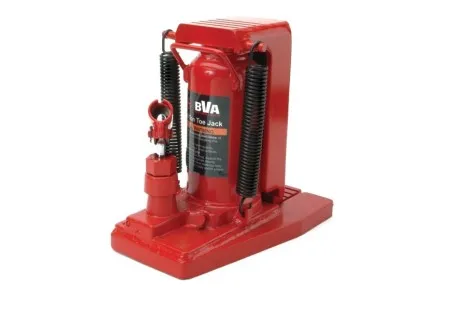

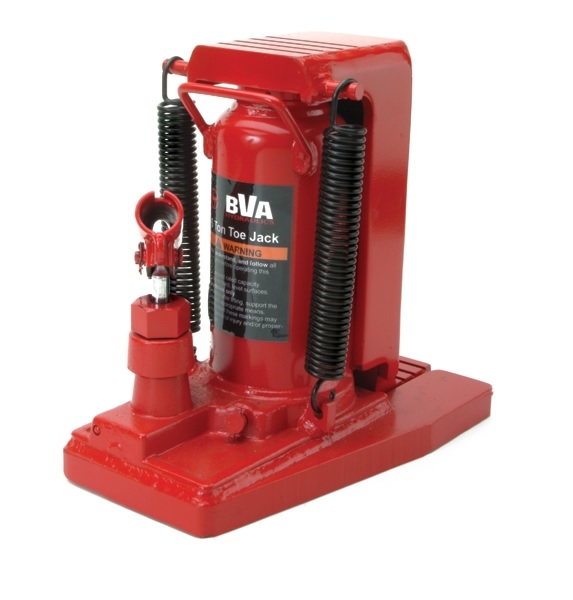

BVA - 6
| 6000Kgs
| 6000Kgs
| 267mm
| 22mm
| 152mm
| 27.2Kgs
|

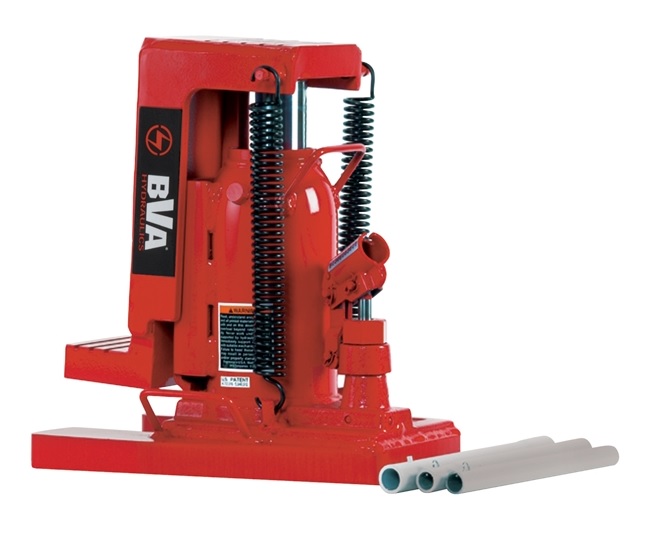

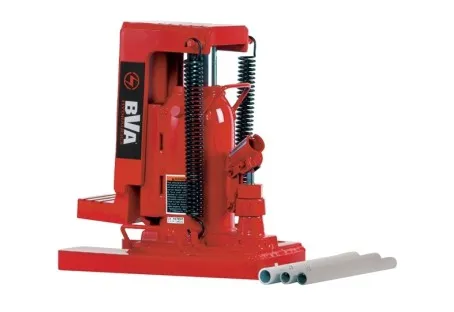

BVA - 10
| 10,000Kgs
| 10,000Kgs
| 280mm
| 29mm
| 130mm
| 39.5Kgs
|
Supplied with Lifting Handle.
Due to their design -
1 - The jack base plate is slimline - creating an extremely low entry height - clearance required for the 3-tonne HTJ is only 16mm.
2 - These jacks can lift by either using the Toe for low height / restricted spaces or using the head of the jack for taller objects.
A big plus point for the BVA Steerman jack is that the lifting capacity is the same for both the claw (toe) and the head.
Main featured for the BVA Steerman Toe Jack
1 - Lifting Capacity of 3,000kg, 6000kg, and 10,000kg on both the head and the toe
2 - The jack base plate is slimline - creating an extremely low entry height - clearance required for the 3-tonne HTJ is only 16mm.
3 - These jacks can lift by either using the Toe for low height / restricted spaces or using the head of the jack for taller objects. A big plus point for the HTJ Steerman jack is that the lifting capacity is the same for both the claw (toe) or the head.
4 - The rear of the jack has the pump socket for the lever/handle - The operating lever rotates through 220 degrees
5 - Carry handles fitted to the base making it easy to position these jacks under objects, or for lifting in and out of work vehicles
6 - Chrome plated high-quality Ram and Pump Piston
Model
| Capacity Via Claw | Capacity Via Head | Closed Height
| Claw Clearance
| Stroke
| Weight
|
BVA - 3
| 3000Kgs
| 3000Kgs
| 230mm
| 16mm
| 130mm
| 17.8Kgs
|
BVA - 6
| 6000Kgs
| 6000Kgs
| 267mm
| 22mm
| 152mm
| 27.2Kgs
|
BVA - 10
| 10,000Kgs
| 10,000Kgs
| 280mm
| 29mm
| 130mm
| 39.5Kgs |
Supplied with Lifting Handle
Maintenance • Keep the jack clean, especially protect him from sand and water • Lubricate all gliding and moving parts thoroughly. Checking oil level Check the oil level regularly by retracting the piston fully, placing the jack in a vertical position and carefully removing the rubber oil- filler plug. The oil level should be up to the hole with the jack in vertical position. Top-up as necessary, but do not over-fill. Replace the rubber oil-filler plug. Only use high quality Yale hydraulic oil to Class ISO 32.
Services
The definition of lifting equipment and accessories used in LOLER makes it clear that Jacks including hydraulic Toe Jacks are lifting equipment. Therefore all lifting jacks must be inspected at least annually not exceeding 12 months by a competent person. Adverse working conditions may dictate shorter inspection periods.
Please contact our Sales Team @ ULS if you require us to carry out your annual servicing on this product or any similar products.AF162.
