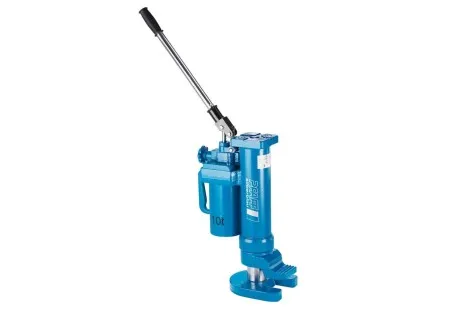

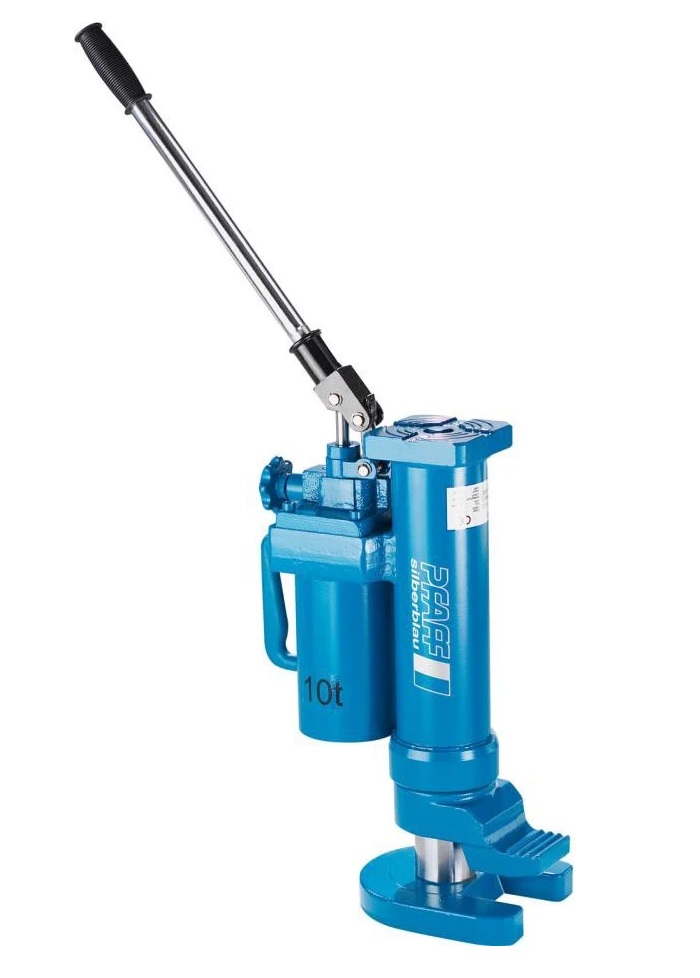

Pfaff Rotational Jack MH
Brand:
Capacity
5000Kgs up to 10,000Kgs
(5 tonne - 10 tonne)
Description
The PFAFF MHS Rotational Toe Jack. Great multi-functional hydraulic jack ideal for low-height lifting/working in confined spaces or lifting machinery/forklifts that have very low floor clearance - Can be used both vertically or horizontally. The main design plus is the claw can rotate 360° making positioning simple and easy. These jacks fit perfectly under most forklifts - Fitted with carry handles.
Add to cart
Add to quoteRelated products
Hydraulic Rotational Toe Jack
HM
Heavy duty 360° Hydraulic Rotational Toe Jack c/w carry handle. 5-tonne and 10-tonne models available (HM50 & HM100), designed as a universal lifting jack or pushing jack, which is perfect for low-height lifting applications or when working in confined spaces. ideal forklift maintenance jack.
£264.88 ex VAT
£317.86 inc VAT
The PFAFF MHS Rotational Toe Jack. A great multi-functional lifting jack with a 360° rotating lifting claw, ideal for low-height lifting/working in confined spaces or lifting machinery/forklifts that have very low floor clearance. Can be used both vertically or horizontally making this a universal toe jack.
The main selling point with the MH Pfaff Rotational Toe Jacks is the fact that the claw can rotate 360° making positioning simple and easy, especially in compact areas. These jacks fit perfectly under most forklifts. Fitted with a carry handle on the body of the jack, which is great for lifting the jack in and out of work vehicles or when positioning jacks ready for lifting loads. the 25-tonne toe jack is supplied with transport wheels as standard.
These toe jacks can be lifted by either using the Toe for low height / restricted spaces or using the head of the jack for taller objects.
The two big advantages of the MH Rotational Toe Jacks -
(1) the lifting capacity is the same for both the claw (toe) and the head.
(2) Can be used horizontally for pushing objects apart as well as using vertically the lift an object such as a forklift or machinery.
| Model | Capacity via Claw | Closed Height | Claw Clearance | Stroke | Weight |
| MH 50 | 5,000Kgs | 368mm | 25mm | 205mm | 25Kgs |
| MH 100 | 10,000Kgs | 420mm | 30mm | 230mm | 35Kgs |
| MHS 250 | 25,000Kgs | 505mm | 58mm | 215mm | 109Kgs |
Supplied with Lifting Handle as standard.

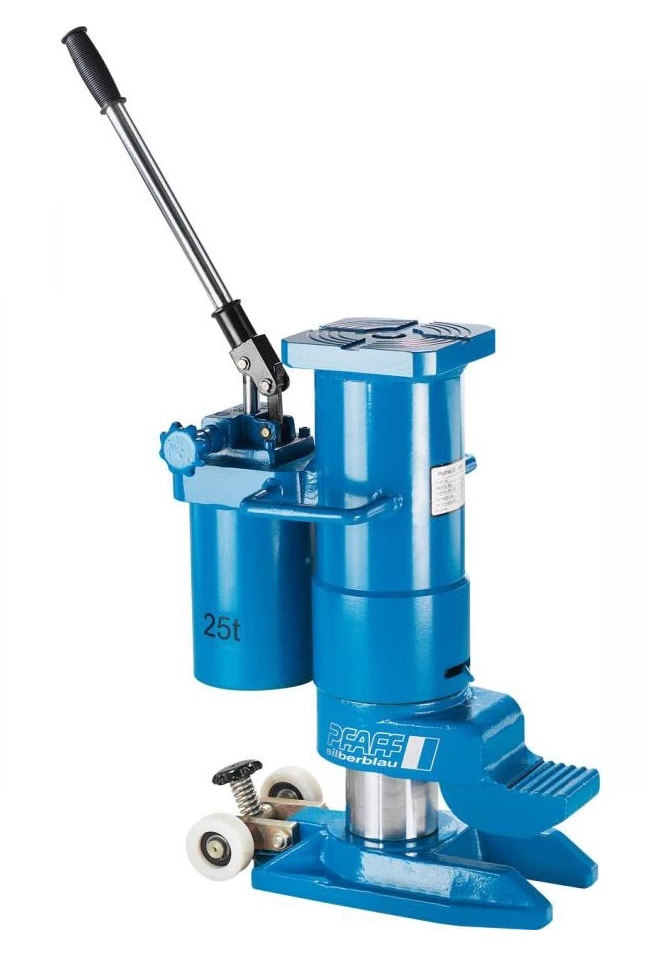

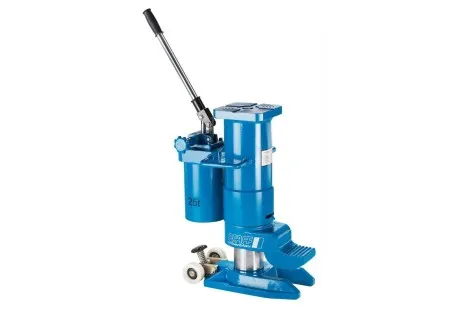

Due to the physical size & weight of MHS250, this model has rear castors fitted as standard to aid the mobility of the jack.
Main features of the MH Rotational Machine Lifting Jack
1 - Multi-functional design, can be used both vertically or horizontally.
2 - 360° rotatable claw making light work of exact positioning near the object to be lifted.
3 - Slimline Base - the body and Claw suit objects or machinery with a low clearance lifting point.
4 - MHS250 has transport wheels fitted to a standard for easy movement and positioning.
5 - Manufactured by Pfaff - German quality.
| Model | Capacity via Claw | Closed Height | Claw Clearance | Stroke | Weight |
| MH 50 | 5,000Kgs | 368mm | 25mm | 205mm | 25Kgs |
| MH 100 | 10,000Kgs | 420mm | 30mm | 230mm | 35Kgs |
| MH 250 | 25,000Kgs | 505mm | 58mm | 215mm | 109Kgs |
Supplied with removable lifting handle.
Maintenance
Keep the jack clean, especially protect him from sand and water • Lubricate all gliding and moving parts thoroughly. Checking oil level Check the oil level regularly by retracting the piston fully, placing the jack in a vertical position, and carefully removing the rubber oil-filler plug. The oil level should be up to the hole with the jack in a vertical position. Top-up as necessary, but do not over-fill. Replace the rubber oil-filler plug. Only use high-quality Yale hydraulic oil to Class ISO 32.
Services
The definition of lifting equipment and accessories used in LOLER makes it clear that Jacks including hydraulic Toe Jacks are lifting equipment. Therefore all lifting jacks must be inspected at least annually not exceeding 12 months by a competent person. Adverse working conditions may dictate shorter inspection periods.
Please contact our Sales Team @ ULS if you require us to carry out your annual servicing on this product or any similar products.AF162.
