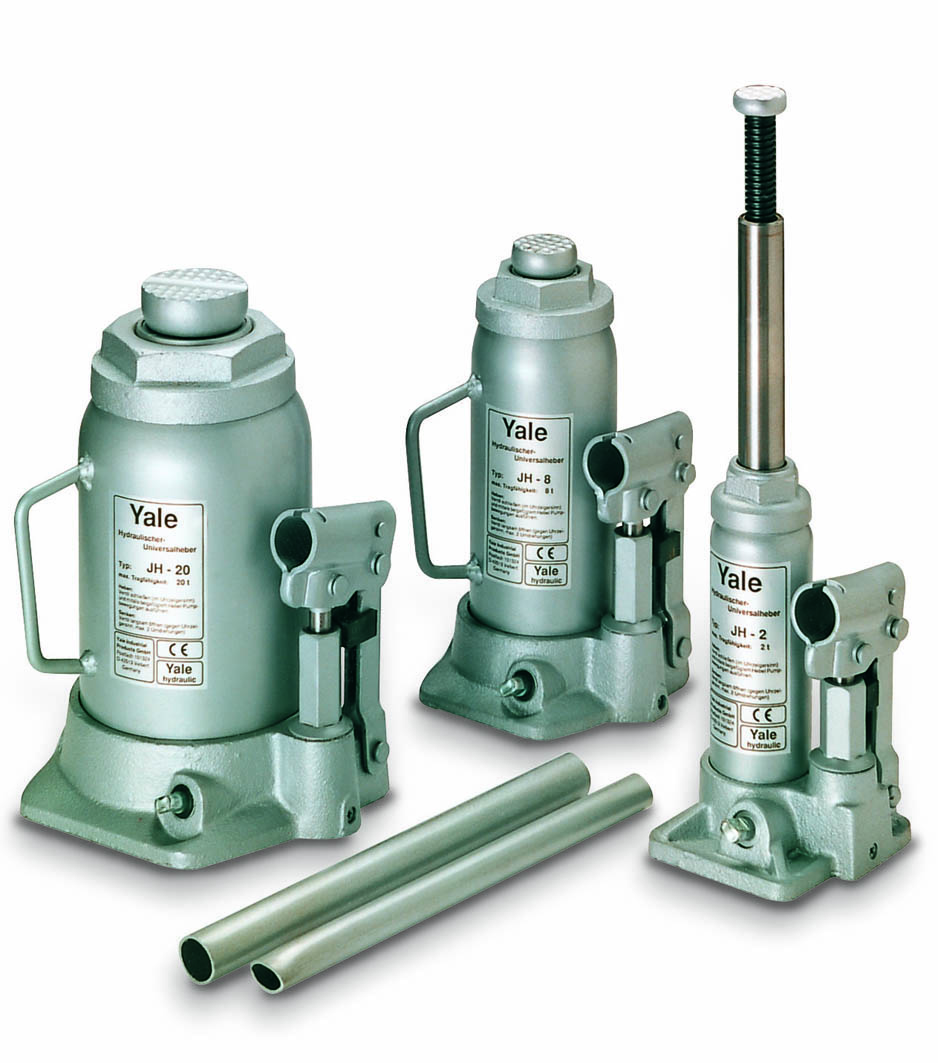

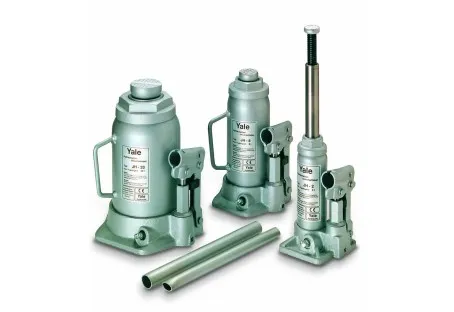

JH - Yale Universal Bottle Jacks

The Yale JH Universal Bottle Jack is a quality manufactured jack that can be used in the vertical position. Ideal model if to be used for a multitude of tasks, lifting, lowering, pushing apart, moving, and supporting a load up to 50,000Kgs or 50 tonnes. These Hydraulic Bottle Jacks and have been designed for general simple operations such as lifting machinery off the floor to add skates underneath for moving, raising a car to change a wheel/tyre, or supporting a load once lifted off the floor.

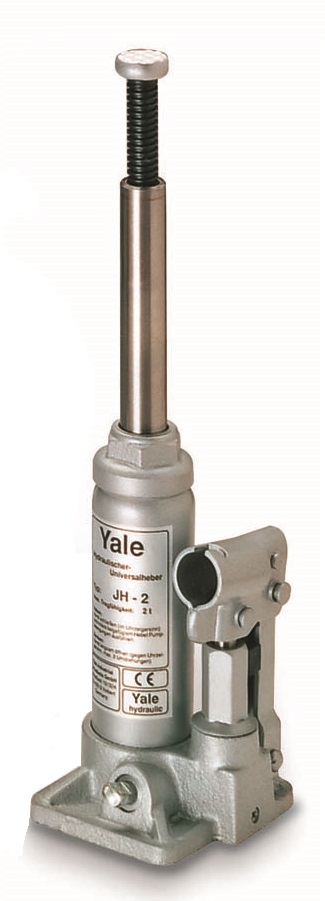

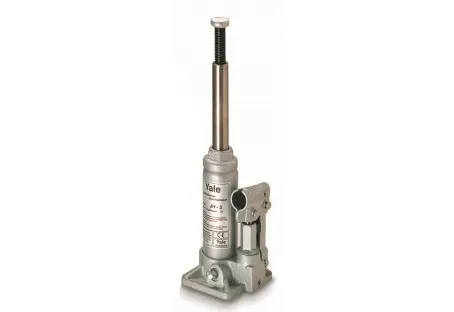

The added benefit with the Yale range of bottle Jacks is that all models from 2 tonnes up to 20 tonnes have a screw extension fitted, this not only increases the lifting stroke but also aids the user to quickly adjust the jack while it is in the closed position so that it fills the open gap between floor and lifting point. Making lifting quicker and without using packing materials to bridge the gap.

Model	Capacity	Closed Height	Stroke	Screw Extension	Weight
JH-2B	2,000Kgs	181mm	115mm	50mm	2.7Kgs
JH-4B	4,000Kgs	205mm	126mm	60mm	3.7Kgs
JH-6B	6,000Kgs	219mm	130mm	75mm	4.7Kgs
JH-8B	8,000Kgs	225mm	152mm	70mm	5.7Kgs
JH12B	12,000Kgs	240mm	153mm	80mm	8.0Kgs
JH20B	20,000Kgs	240mm	153mm	80mm	11.0Kgs
JH-30	30,000Kgs	280mm	180mm	-	22.0Kgs
JH50/2	50,000Kgs	305mm	178mm	-	53.0Kgs

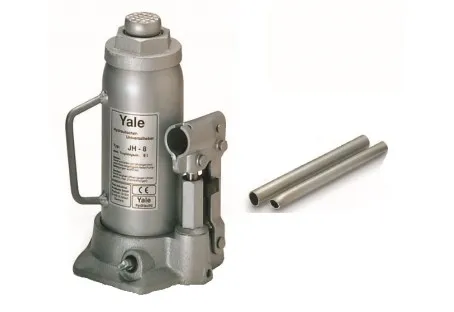

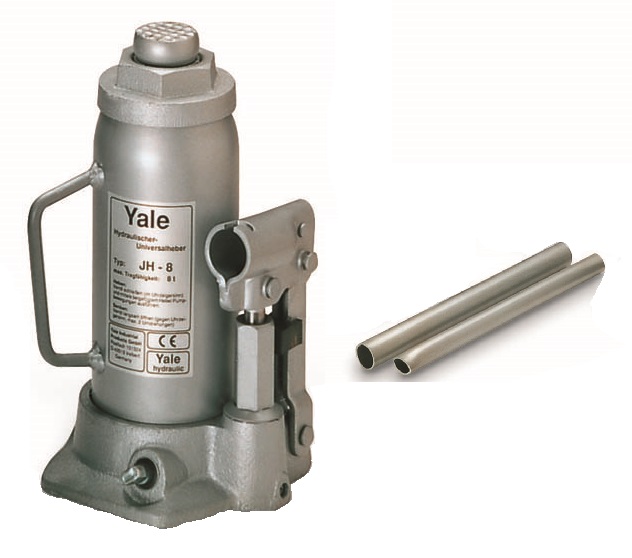

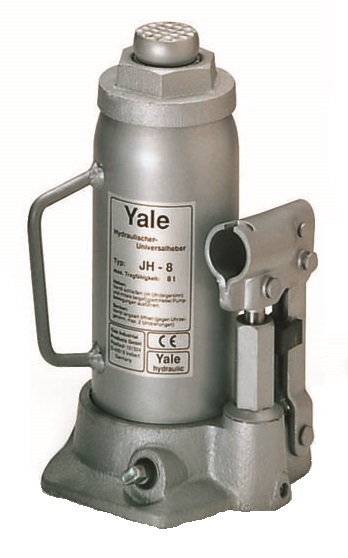

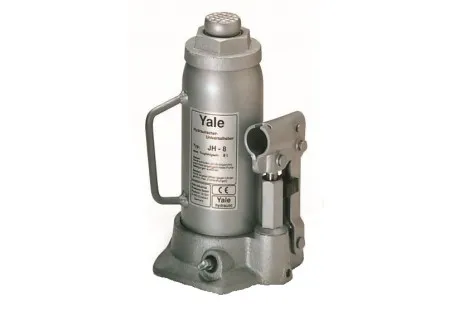

Quality Yale Bottle Jack with Handle.

Simple to operate - Tighten the pressure relief value by using the special key that is designed within the handle - Attach the handle to the pump socket on the jack body - Begin pumping the handle to raise the piston and in turn, this will raise the load or car or machines, etc. To lower the load, remove the handle from the jack, re-attach the handle to the pressure relief valve and slower turn the handle anti-clockwise and the load will start the lower, to stop the load, turn the handle clockwise and close the relief value.
