Probst Round Grab RG SAFELOCK
Brand:
Capacity
2500Kgs, 4000Kgs and 6000kgs
(2.5tonne, 4 tonne & 6 tonne)
Description
The Probst RG SAFELOCK Round grab range of pipe lifting equipment for both transporting and laying concrete pipes. SAFELOCK model range, the clamping force of the claws is maintained fully in all cases, even if the carrier is operated incorrectly.
Add to cart
Add to quoteRelated products
Probst SVZ-UNI Manhole and Cone Lifter
Probst SVZ-UNI
The Probst Manhole and Cone Clamp offers the safest lifting aid for larger concrete manhole and cone style products. No additional help required from anybody other than the driver. No one getting on back of lorries or near the edge of the laying area. The driver can pick up , transport and position easily and safely due to the automatic release movement
£2,848.98 ex VAT
£3,418.78 inc VAT
Automatic Manhole lifter ML 1067.1
ML 1067.1
Automatic Manhole Ring Lifter to enable the safe movement of large concrete shaft and ring style products, such as bases and covers, cones and other shaft rings.
£2,548.98 ex VAT
£3,058.78 inc VAT
Probst Concrete Gully Hook
GH
Probst GH Gully Hook with chain sling. Designed to make lifting, handling and installing concrete gullies easier, safer and quicker. This quality manufactured handy solution fits snugly in the gully spout without the need to remove the rodding eye cover or to damage the gasket.
£332.98 ex VAT
£399.58 inc VAT
Probst Mechanical Concrete Gully Lifter
GL
Probst Mechanical Concrete Gully Lifter is the perfect solution for loading and offloading Gullies from transport and delivery lorries safely and quickly, can be attached to an Excavator, Backactor, Crane, or Hiab. Designed to fit snugly on the gully and will readily accommodate the spout.
£889.98 ex VAT
£1,067.98 inc VAT
Probst Concrete Pipe Lifter RVD 4.5 ECO
Probst RVD-4.5-ECO
Probst RVD Concrete Pipe Lifter. Universal excavator attachment enabling large steel reinforced concrete pipes to be unloaded, transported, and installed on-site.
£11,244.98 ex VAT
£13,493.98 inc VAT
Probst Mechanical Round Grab
Probst RG
The Probst Round grab is a simple mechanical clamp designed for lifting, transporting, and laying pipes and other round elements. Manufactured with an ultra-slim body which helps when laying round pipes within very slender trenches.
£1,199.98 ex VAT
£1,439.98 inc VAT
Probst Round Grab RG20/85 SAFELOCK
Probst RG20/85 Safelock
The Probst Round Grab RG20/85 SAFELOCK for lifting, transporting, and laying concrete pipes on construction sites. SAFELOCK design - The clamping force of the claws is maintained fully in all cases, even if the carrier is operated incorrectly.
£2,678.98 ex VAT
£3,214.78 inc VAT

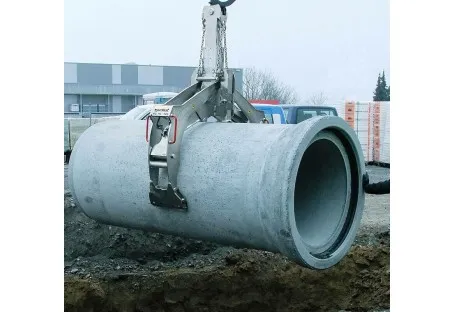

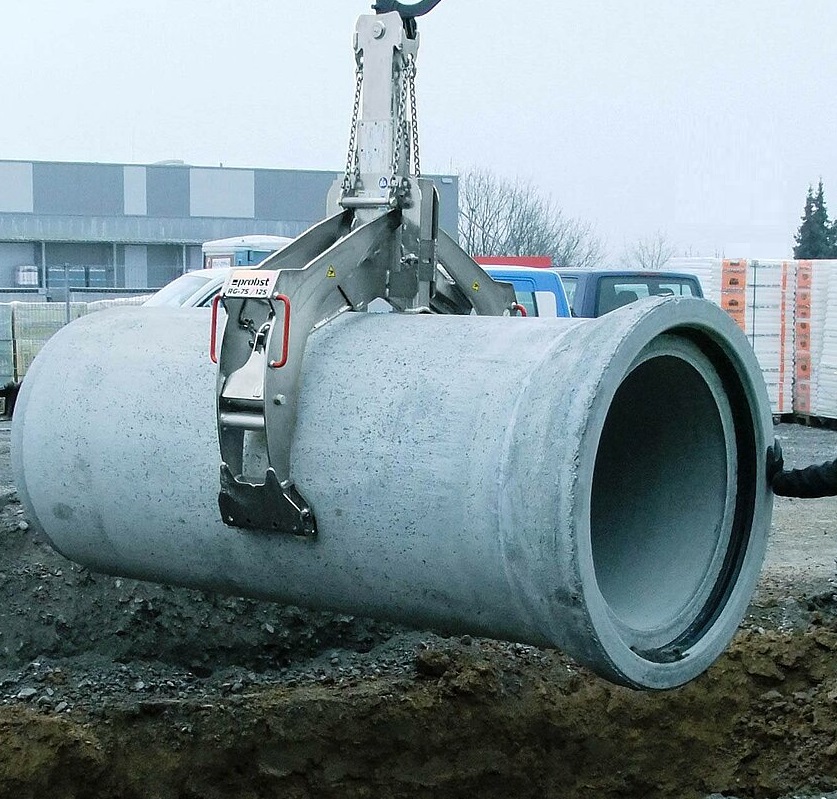

The Probst RG SAFELOCK Round grab range of pipe lifting equipment for both transporting and laying concrete pipes. SAFELOCK model range, the clamping force of the claws is maintained fully in all cases, even if the carrier is operated incorrectly. All three lodels within the RG Safelock Pipe Grab range are supplied with a patented safety locking system. Another advantage of the RG Safelock pipe grabs is that they have a slim design to allow "joint sleeve pipes" lying close together to be picked up from the lorry loading area and can also be used for laying concrete pipes in very narrow trenches.
The RG Round grab with Safelock is a concrete pipe lifter that can be operated by one person, supplied with handles to help guide the grab and pipe into position. The RG20/85 Round Grab is Probst best selling model, lifting capacity is 2500Kgs (2.5 tonnes). or there is the RG75/125 Safelock and the RG100/150 Safelock.
What is the Probst RG Safelock Pipe Grab? Safelock refers to the patented safety locking system fitted to the Probst Round Grab RG75/125 Safelock, Round Grab RG100/150, and the RG20/85. When lifting the pipe, the grab generates tension on the pipe, which is maintained even when the product is set down.
RG20/85 SAFELOCK - 2.5-tonne capacity with a gripping range of 200mm up to 870mm - Most popular selling round grab.
| Model | Probst Part Number | Lifting Capacity WLL | Outside Pipe Dia | Gripper length | Weight |
| RG-20/85 SAFELOCK | 54500006 | 2500 Kgs | 200 - 870 mm | 420 mm | 125 Kgs |
Other Models available
RG75/125 SAFELOCK - 4-tonne capacity with a gripping range of 720mm up to 1280mm
RG100/125 SAFELOCK - 6-tonne capacity with a gripping range of 920mm up to 1530mm
| Model | Probst Part Number | Lifting Capacity WLL | Outside Pipe Dia | Gripper length | Weight |
| RG-75/125 SAFELOCK | 54500005 | 4000 Kgs | 720 - 1280 mm | 440 mm | 370 Kgs |
| RG-100/150 SAFELOCK | 54500008 | 6000 Kgs | 970 - 1530 mm | 460 mm | 425 Kgs |
Probst Round Grab RG - SAFELOCK
Technical details
RG-20/85-SAFELOCK: Part Number 54500006 - Increased grip width and increased working load limit as with RG-20/80. Besides concrete pipes, stoneware pipes can also be laid. Easy adjustment of the outer diameter by means of a scale and a central lock pin. Rubber grippers. Plastic-coated height adjustment bracket. Durable surface protection by galvanizing.
RG-75/125-SAFELOCK: Part Number 54500005. Easy, continuous adjustment of the external diameter by means of a scale using threaded spindles. Crank included in the supply. Replaceable steel grab clamps with a reliable grip. Optionally available: rubber gripper jaws to prevent surface damage. Durable surface protection by galvanizing.
RG-100/150-SAFELOCK: Part Number - 54500008 Easy, continuous adjustment of the external diameter by means of a scale using threaded spindles. Crank included in the supply. Replaceable steel grab clamps with a reliable grip.
RG20/85 SAFELOCK - 2.5-tonne capacity with a gripping range of 200mm up to 870mm - Most popular selling round grab.
| Model | Probst Part Number | Lifting Capacity WLL | Outside Pipe Dia | Gripper length | Weight |
| RG-20/85 SAFELOCK | 54500006 | 2500 Kgs | 200 - 870 mm | 420 mm | 125 Kgs |
RG75/125 SAFELOCK - 4-tonne capacity with a gripping range of 720mm up to 1280mm
RG100/125 SAFELOCK - 6-tonne capacity with a gripping range of 920mm up to 1530mm
| Model | Probst Part Number | Lifting Capacity WLL | Outside Pipe Dia | Gripper length | Weight |
| RG-75/125 SAFELOCK | 54500005 | 4000 Kgs | 720 - 1280 mm | 440 mm | 370 Kgs |
| RG-100/150 SAFELOCK | 54500008 | 6000 Kgs | 970 - 1530 mm | 460 mm | 425 Kgs |
Further information
Designed for gripping and laying concrete pipes.
SAFELOCK - Patented safety locking system: When lifting the product, the grab generates tension on the pipe, which is maintained even when the product is set down.
One-man operation.
Adjustable height supports, which can be adjusted with a scale using the external pipe diameter. This guarantees an optimum grab position.
The slim design allows joint-sleeve pipes lying close together to be picked up onto the lorry loading area and used in very narrow trenches.
With handles to guide the claw.
The eye runs in a setting with 2 hanging positions. One is used for locked grabbing, the other for releasing the catch, and for empty lifting. This allows operation with only one person.
Probst - Making hard work easier !!!!
For over 60 years Probst has been manufacturing tools and equipment that have made everyday life on the construction site easier. Thanks to many important ergonomic and efficiency-enhancing innovations, Probst Material Handling today is the world market leader and defines the handling of construction materials on sites and in concrete plants.
The headquarters are in Erdmannhausen (Germany), the Competence Centre Robot Production is in Könitz (Germany), as well as at our five subsidiaries in Great Britain, France, Italy, Poland, and the USA, find the optimal solution for our customers every day. We are present worldwide with over 450 sales partners. Since 2020, the entire corporate group has been climate-neutral.
Whether in structural or civil engineering, whether in the garden or on the street: Probst products are at home on all construction sites. there machines and tools make life easier for everyone who works with paving stones, pipes, and other concrete products. WHY - Because they put efficiency and ergonomics first, and have become the world market leader in the field of gripping and laying technology through numerous innovations.
