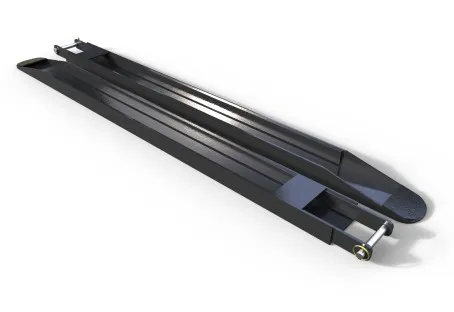

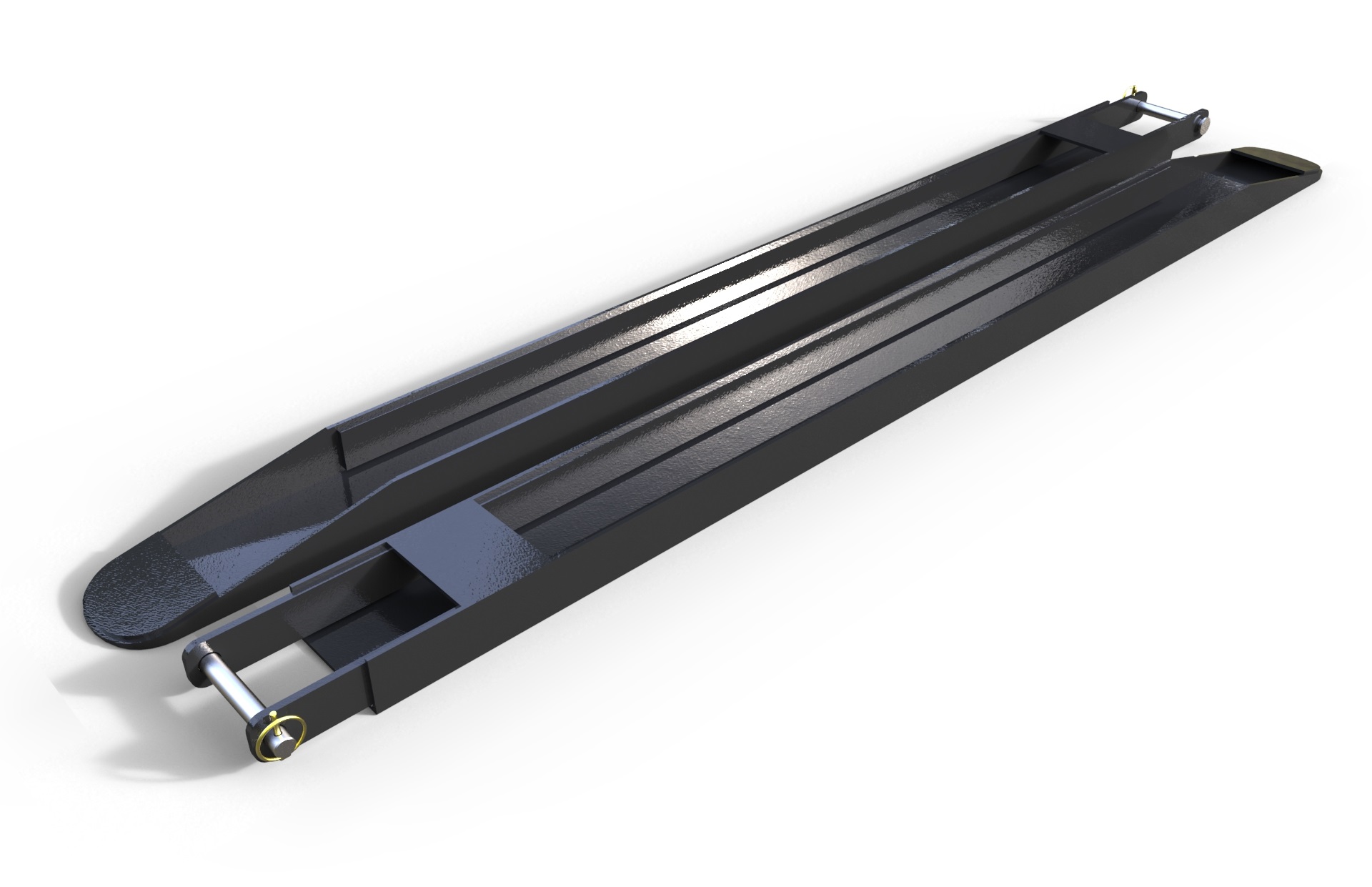

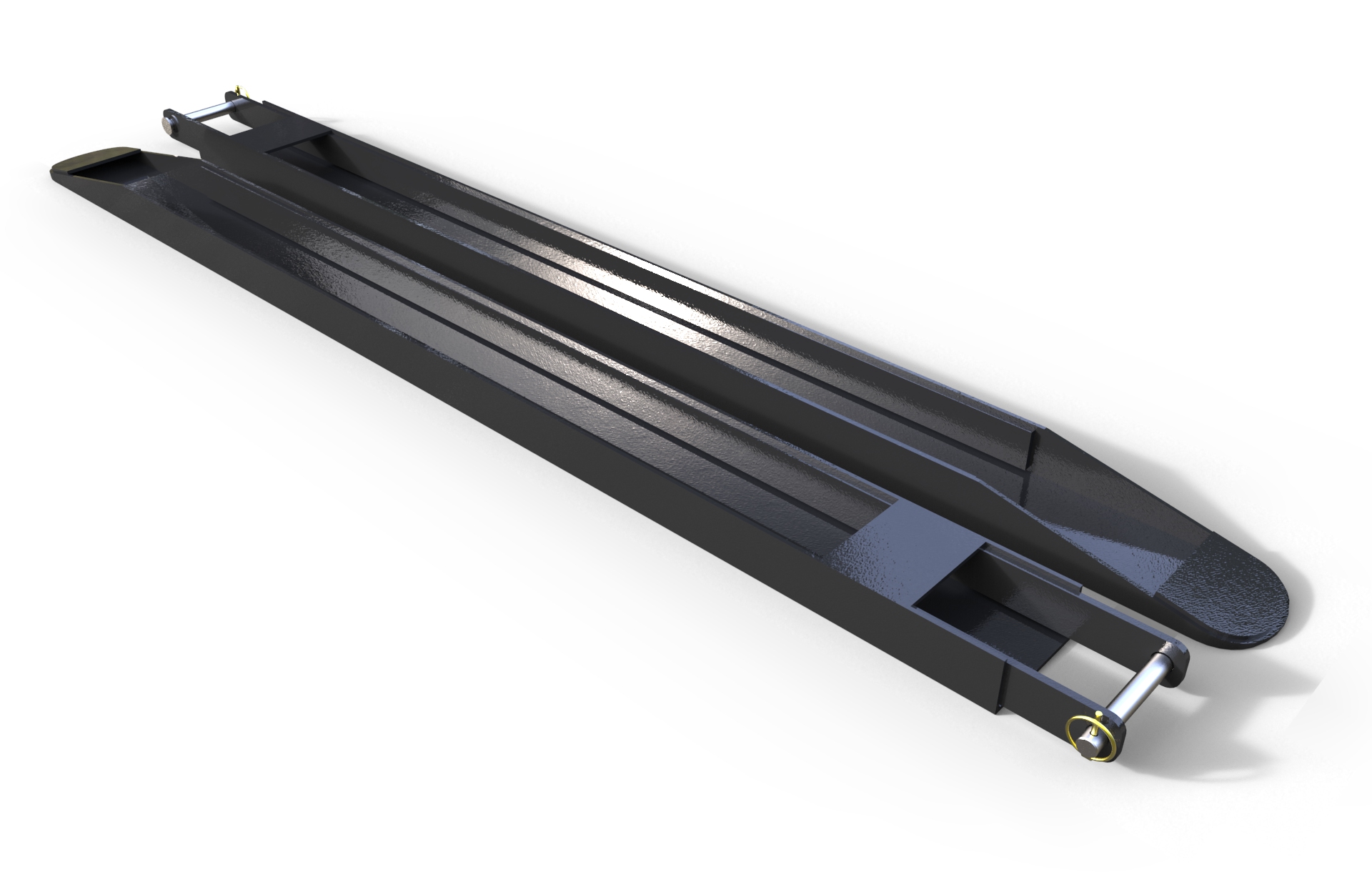

Ultra Heavy Duty Fork Extensions
Brand:
Capacity
3,000Kgs up to 5,000Kgs
(3t - 5t)
Please consult forklift manufacturer for SWL
Description
Our best-selling Ultra Heavy Duty Fork Extensions are manufactured in the UK and supplied fully tested and certified. Supplied with extra strengthening, and thicker walls making them the strongest fork extensions on the UK market
£255.48 ex VAT
£306.58 inc VAT
This Product is supplied with 3 year Manufacturer warranty, fully tested & certificated.
Add to cart
Add to quoteRelated products
Fork Extensions - Heavy Duty Range
EFEX
Fork Extensions - Heavy Duty Range manufactured from 6mm steel. Ideal for extending any forklift's reach, allowing larger and longer loads to be lifted and transported safely. Our Fork Extensions are manufactured in the UK and available from stock today
£259.98 ex VAT
£311.98 inc VAT
Our best-selling Ultra Heavy Duty Fork Extensions are manufactured in the UK and supplied fully tested and certified. Supplied with extra strengthening, and thicker walls making them one of (if not) the strongest fork extensions on the UK market, to back up our confidence, this range of Forklift Fork extensions is supplied with a 3 Year warranty. Each set is fully tested and supplied with certification.

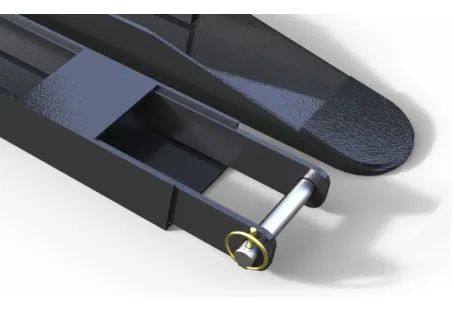

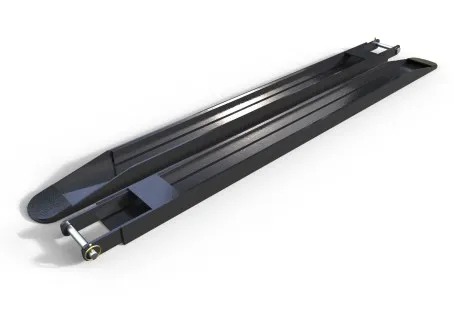

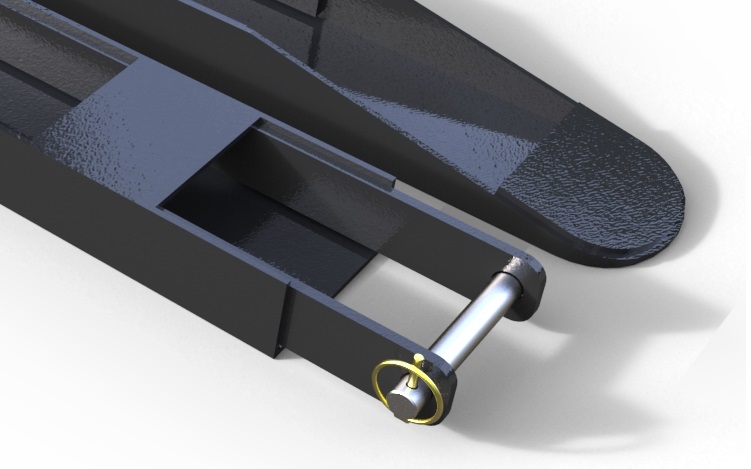

This quality range of fork extension is manufactured originally from 5mm steel then additional 8mm thick strengthening plates are added to the inside walls to create a wall thickness of 13mm, and additional cross plate added for greater stability. They fit easily and quickly to fork trucks and are held securely in place with the supplied heel pin. Unlike many cheaper options online these quality extensions offer many design benefits to aid in lifting and moving awkward shaped objects.

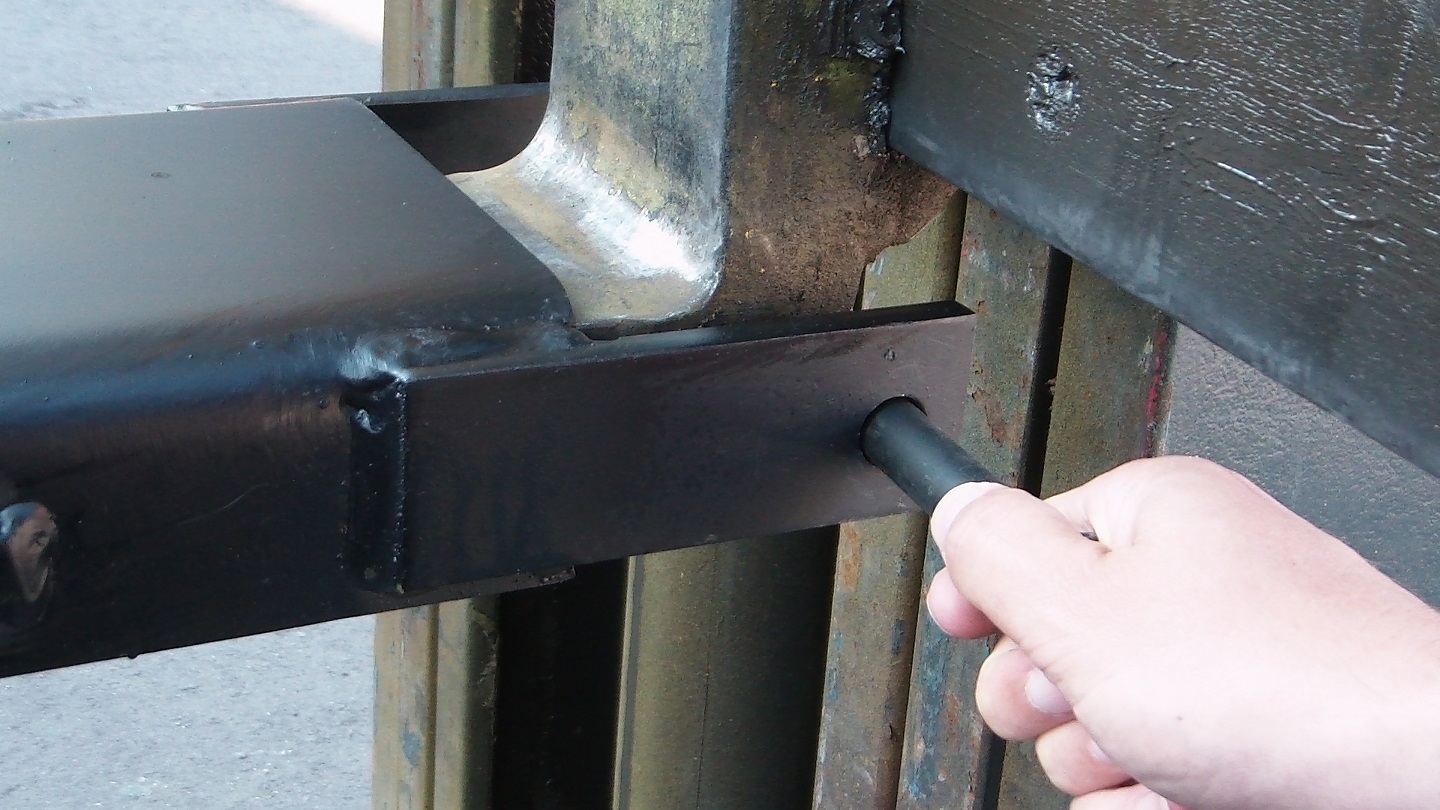

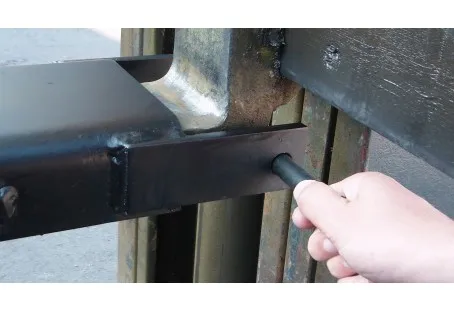

The easy-to-remove heel pin allows for quick drive-in entry, removing the need for any manual lifting from the forklift driver (in compliance with Health & Safety manual lifting regulations), whilst ensuring the fork extensions are safely secured to the truck forks.

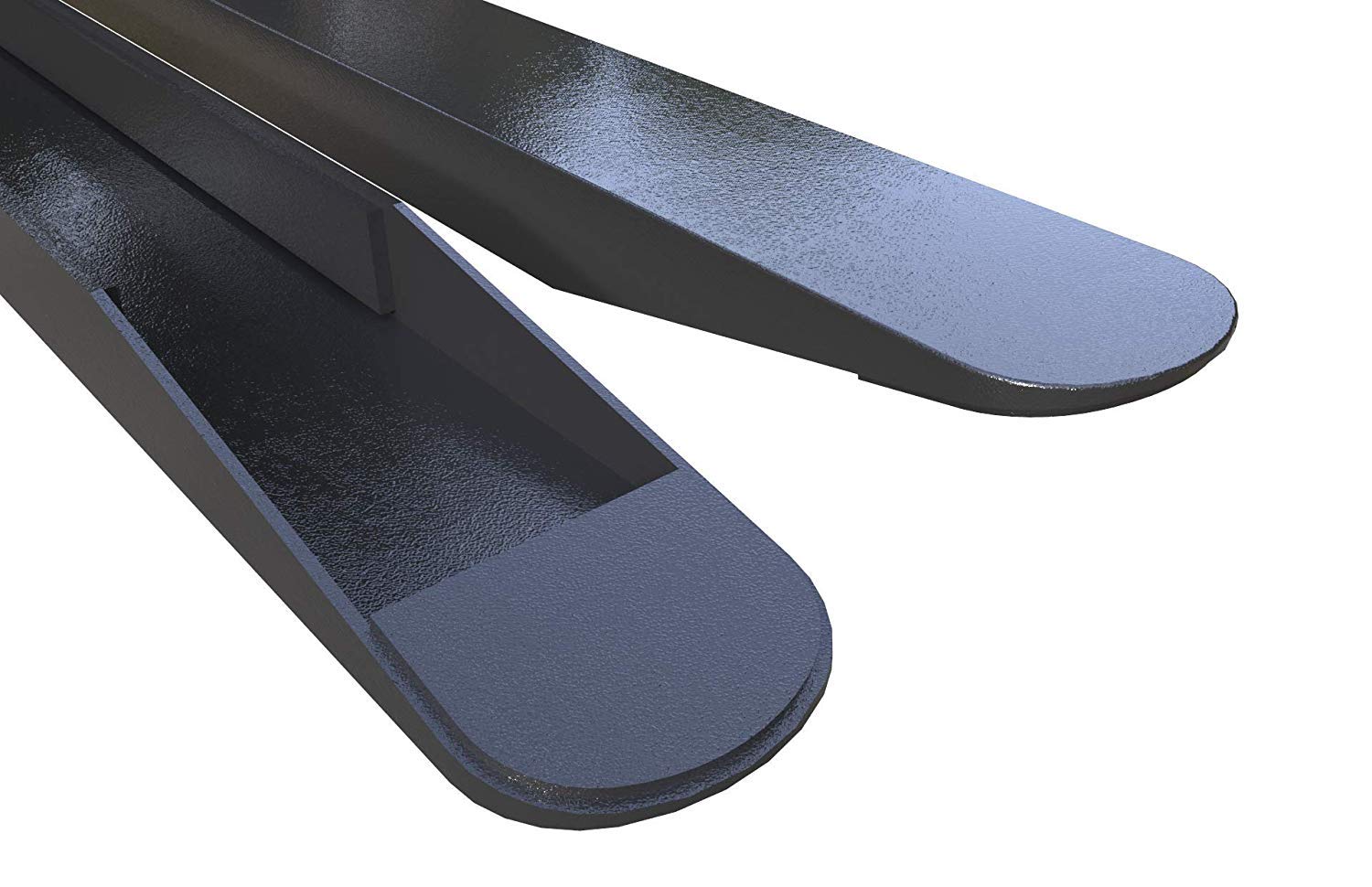

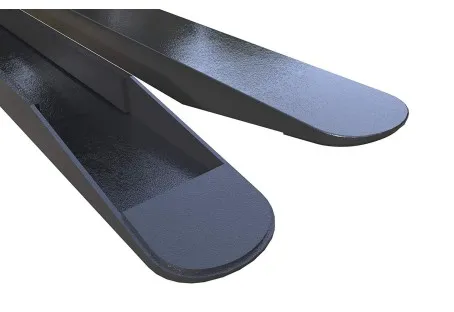

Our FEX range of fork extensions are all supplied with capped rounded toes to help with durability and added strength. The rounded shape also allows for easy entry and exit from the load.

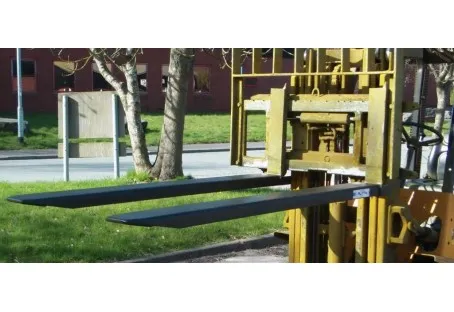

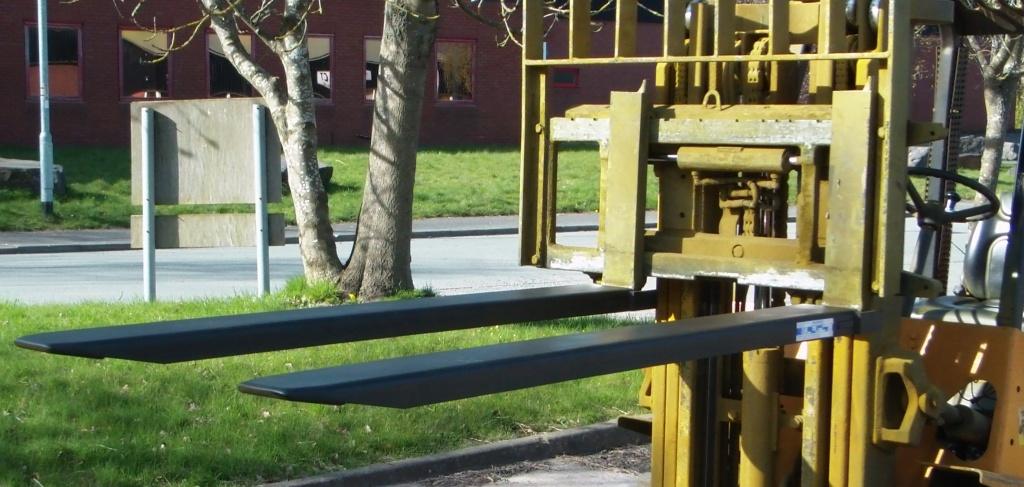

Forklift Fork Extensions are designed to help stabilise and offer safe handling of nonstandard loads when the standard forklift-fitted tines are not long enough.
Come complete with a closed section at the heel end to ensure suitability for any drop of fork - which is in compliance with BS EN13284.
| Model | Suit Fork Section | Length | C of G | SWL @ Load Ctr | Weight (pair) |
| FEX100-1500 | 100 x 50mm | 1.50m | 644mm | 3 tonne @ 500mm | 47Kgs |
| FEX100-1650 | 100 x 50mm | 1.65m | 721mm | 3 tonne @ 500mm | 51Kgs |
| FEX100-1800 | 100 x 50mm | 1.80m | 794mm | 3 tonne @ 500mm | 56Kgs |
| FEX100-2000 | 100 x 50mm | 2.00m | 894mm | 3 tonne @ 500mm | 62Kgs |
| FEX100-2400 | 100 x 50mm | 2.40m | 1096mm | 3 tonne @ 500mm | 75Kgs |
| FEX125-1500 | 125 x 50mm | 1.50m | 649mm | 3.4 tonne @ 500mm | 50Kgs |
| FEX125-1650 | 125 x 50mm | 1.65m | 724mm | 3.4 tonne @ 500mm | 55Kgs |
| FEX125-1800 | 125 x 50mm | 1.80m | 799mm | 3.4 tonne @ 500mm | 60Kgs |
| FEX125-2000 | 125 x 50mm | 2.00m | 899mm | 3.4 tonne @ 500mm | 67Kgs |
| FEX125-2400 | 125 x 50mm | 2.40m | 1099mm | 3.4 tonne @ 500mm | 80Kgs |
| FEX150-1800 | 150 x 60mm | 1.80m | 811mm | 5.8 tonne @ 600mm | 66Kgs |
| FEX150-2000 | 150 x 60mm | 2.00m | 911mm | 5.8 tonne @ 600mm | 73Kgs |
| FEX150-2400 | 150 x 60mm | 2.40m | 1111mm | 5.8 tonne @ 600mm | 88Kgs |
Please note that the depth of the Fork Extensions is approx. 10mm deeper than the fork depth shown above.
Safety Note - Even though Forklift Extensions are used to extend the forklift's reach, overbalancing can happen and the rear of the forklift could rise off the floor and tip forward. It is stated that all fork extensions should not increase the length over the original forks by more than 66% also, the width of the new Fork Extension should not be wider than 12.5mm (1/2") If in any doubt please reference the manual of the Forklift being used. Example - If the original fork tines are 1200mm long then the new Fork extensions for the forklift should be no longer than 1992mm.
Please note - All Forks are sold as one pair.
If you do not see the size you require - Please contact us - as we can manufacture to most requirements.
Please note that all fork extensions from all manufacturers should not be kept on the forks permanently and should only be used to offer assistance when lifting and repositioning larger loads or to offer stability when required.
This Product is supplied with 3 year Manufacturer warranty, fully tested & certificated.
Key Features and Benefits with our UK manufactured quality Ultra Heavy Duty Fork Extensions
Manufactured from heavy-duty 5mm thick steel for maximum longevity
Additional 8mm thick internal strengthening plates for added durability

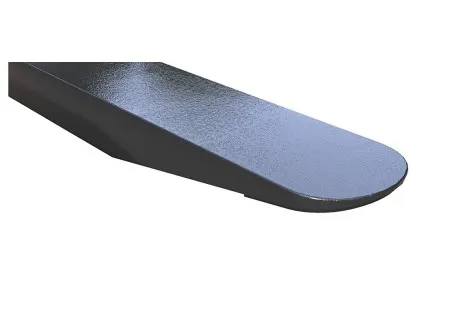

Fully rounded, heavy-duty, toe section for easy entry into and out of loads or pallets
Removable heel pin offers 'drive in' entry, negating the need for manual handling whilst complying with manual handling regulations
The rear strap offering closed base design for added safety, whilst in keeping with BS EN recommended standards
'CE' marked and supplied with Certificate of Conformity to comply with Health & Safety Regulations
| Model | Suit Fork Section | Length | C of G | SWL @ Load Ctr | Weight (pair) |
| FEX100-1500 | 100 x 50mm | 1.50m | 644mm | 3 tonne @ 500mm | 47Kgs |
| FEX100-1650 | 100 x 50mm | 1.65m | 721mm | 3 tonne @ 500mm | 51Kgs |
| FEX100-1800 | 100 x 50mm | 1.80m | 794mm | 3 tonne @ 500mm | 56Kgs |
| FEX100-2000 | 100 x 50mm | 2.00m | 894mm | 3 tonne @ 500mm | 62Kgs |
| FEX100-2400 | 100 x 50mm | 2.40m | 1096mm | 3 tonne @ 500mm | 75Kgs |
| FEX125-1500 | 125 x 50mm | 1.50m | 649mm | 3.4 tonne @ 500mm | 50Kgs |
| FEX125-1650 | 125 x 50mm | 1.65m | 724mm | 3.4 tonne @ 500mm | 55Kgs |
| FEX125-1800 | 125 x 50mm | 1.80m | 799mm | 3.4 tonne @ 500mm | 60Kgs |
| FEX125-2000 | 125 x 50mm | 2.00m | 899mm | 3.4 tonne @ 500mm | 67Kgs |
| FEX125-2400 | 125 x 50mm | 2.40m | 1099mm | 3.4 tonne @ 500mm | 80Kgs |
| FEX150-1800 | 150 x 60mm | 1.80m | 811mm | 5.8 tonne @ 600mm | 66Kgs |
| FEX150-2000 | 150 x 60mm | 2.00m | 911mm | 5.8 tonne @ 600mm | 73Kgs |
| FEX150-2400 | 150 x 60mm | 2.40m | 1111mm | 5.8 tonne @ 600mm | 88Kgs |
Please note - All Forks are sold as one pair.
If you do not see the size you require - Please contact us - as we can manufacture to most requirements
Maintenance of Ultra Heavy Duty Fork Extensions
The fork extensions should be inspected weekly for the general condition with particular attention paid
to: All weld points and Wear and distortion of extensions and heel pin attachments
Damage or failure must be reported and rectified immediately prior to re-use.
General surface rusting especially in critical areas should be treated with proprietary inhibitors, primers, and paint on a regular basis.
This product is certified for six (6) months from the date of manufacture after which it is the customer’s responsibility to have the product re-tested at an approved testing facility or inspected and logged in a register by a competent person as advised by the HSE.
Since the inception in 1974, Contact Attachments have grown there Company to become "The Quality Leader in Forklift Truck Attachments" and have – along the way – acquired an enviable reputation within the industry, of which they are rightly proud. They have always been known throughout the industry as 'Contact Attachments' the decision was made to change the company trading name officially to 'Contact Attachments Ltd' in 2008.
From holding the position as one of the first forklift truck attachment manufacturers in the UK, the company has continued to grow and prosper by adhering to the company philosophy of offering first class customer service, being on-hand to offer technical help and guidance when needed, and manufacturing a high quality product that is competitively priced within the market. Exciting new opportunities in the overseas market has also further helped develop the Contact brand beyond the UK shores.
They remain committed to serving the material handling industry, committed to maintaining the reputation as a premier solutions providers, and above all committed to providing our industry a professional, experienced and reliable source to turn to when it comes to any particular material handling problem.
