Goods Carrying Cage with Ramp

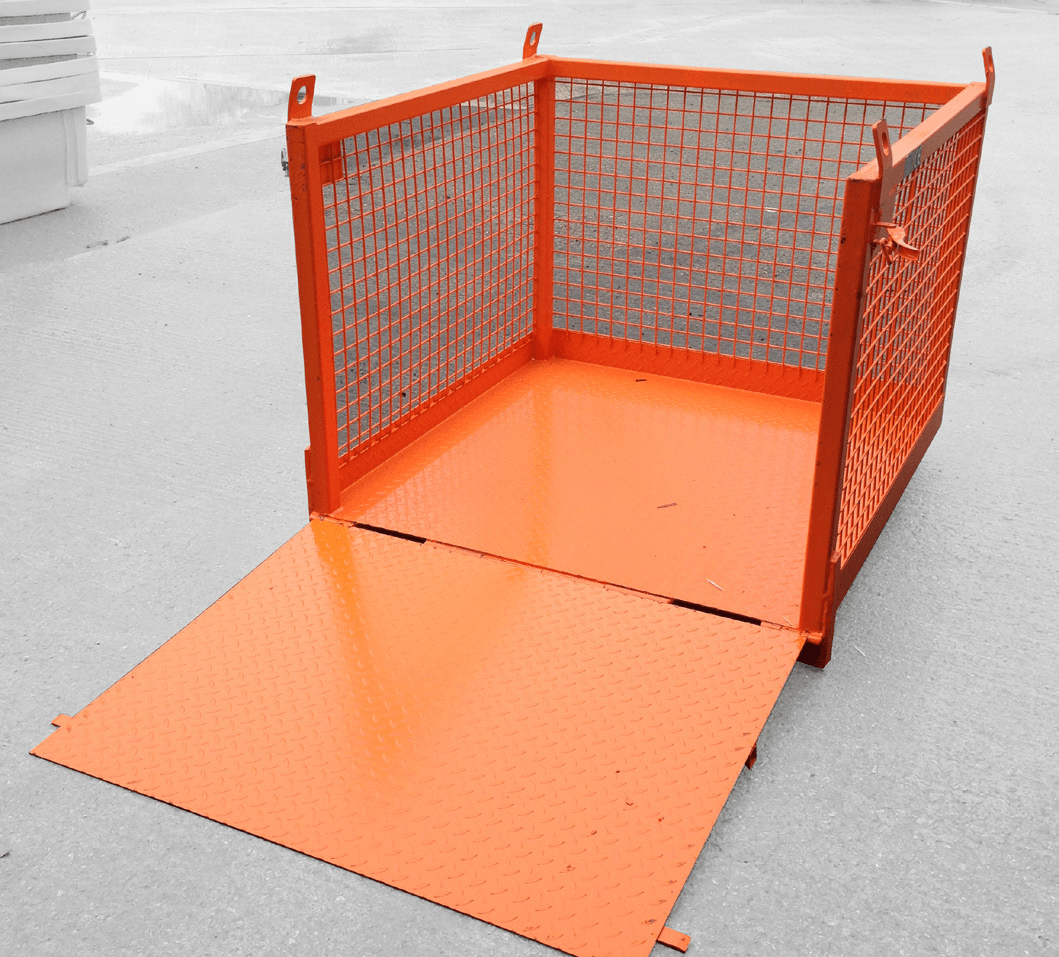

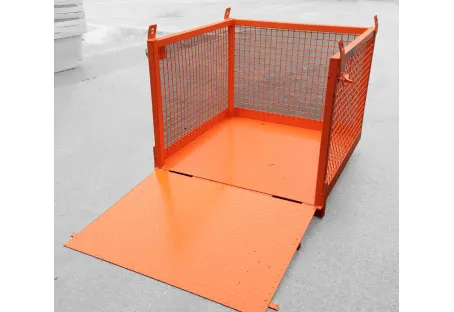

Eichinger 1500kg Goods Carrying Cage c/w Ramp 1250x1250mm CC 1058.3R

All Steel Construction.

3 Models available - With Ramp, Without Ram, and Extra Large.

Fitted with fork pockets and certified lifting points.

Front gate with lock fitted to all models.

All our cages are supplied fully tested with certification for lifting.

USING THE GOODS CARRYING CAGES with LIFTING LUGS

USING WITH A CRANE AND CHAIN SLING:

Attach a suitably rated four-leg chain sling to each of the four lifting eyes.

If using the 1508.5 (3000kg) version, the spreader bar must be located across the width of the cage to stop deflection of the sides and loads being applied to the gates.

LOADING THE CAGE:

Before loading the cage it must be positioned on firm level ground.

Open the cage door and proceed to load in a uniform manner ensuring the weight is evenly distributed.

DO NOT place items, which are higher than the cage’s mesh side panels.

If the load is too large, use a bigger goods cage.

Close and lock the cage door.

The cage can now be moved to where it is required.

LIFTING AND LOWERING A LOAD:

Raise the cage and ensure that the load is even and safe/secure.

If all is OK proceed to move the load to its required location in a smooth manner avoiding fast or jolting movements.

Once in position lower the load onto the cleared area.

Depending upon load and application you may unload the cage with the chains still attached or disconnected.

Once the liftable cage is empty close and lock the gate ensuring that the unit is ready to be lifted and returned to its start point.

USING WITH A TELEHANDLER:

Load the cage as detailed above.

Set the forklift’s forks to the correct width for the cage’s fork pockets making sure that they are equidistant from the centre.

Drive the forklift to the cage aligning the forks with the fork pockets.

Confirm that the forks are the correct distance for the fork pockets and drive the forks into the fork pockets.

CLEANING & MAINTENANCE of Eichinger 1500kg Goods Carrying Cage c/w Ramp 1250x1250mm:

At the end of the shift, ensure the cage is clean and empty with the gate closed and locked.

Where the larger 1058.5 has been used ensure the spreader bar is still in place and again leave with the gates closed and locked.

Where possible the cage should be stored in a clean and safe area.

Eichinger is a quality brand with a history that dates back to 1904 and has been producing building, concrete, and cement equipment since 1946

Their build quality speaks for itself, they do not compromise on quality to achieve profit margin, that’s why an increasing number of companies are turning to Eichinger to supply equipment for their fleet, understanding product quality allows them to reduce maintenance costs and increase the equipment life cycle.

Many companies have chosen to adopt a ‘clean fleet’ policy to ensure consistency and transparency within their fleets. Eichinger manufactures everything in-house, we do not have a string of fabricators supplying slightly different designs of the same equipment, this way you know what you’re getting and you know it will be good to get the job done.
