Geared Coneflow Skip CS 1025H
Capacity
500 Litres to 2000Litres
or
1200Kgs to 4800kgs
Description
The CS1025 Coneflow Concrete Skip is a long-standing favourite, ideal for pouring large volumes of concrete with maximum efficiency, thanks to its geared gate mechanism.
Related products
CS 1034C
Concrete Column Pouring Skip CS 1034C with Bale Arm is an ultra-versatile skip to aid the pouring of wet concrete into all types of formwork, standard, narrow, and difficult areas, and pouring concrete into columns, walls, and pipe laying work.
£2,096.98 ex VAT
£2,516.38 inc VAT
CS 1034CE
Ultra Safe Concrete Pouring Skip with lifting points. Column Skip allows concrete to be easily poured into columns and formwork, it also improves safety for the operator as it removes the crushing points of the bale arm, by using a two leg chain slings to lift.
£2,098.98 ex VAT
£2,518.78 inc VAT
CS 1020H
The CS 1020H Twinflow Skip is a versatile and highly efficient universal pouring skip designed for high-volume concrete pouring. Ideal for projects where precision isn't essential, this skip allows for quick and effective material handling. For added flexibility, it features a fold-away chute that can be deployed to direct the flow of concrete when needed, making it suitable for a range of construction applications.
£1,859.98 ex VAT
£2,231.98 inc VAT
CS 1020
The CS 1020 Twinflow Skip is highly effective for quickly pouring large volumes of concrete where precision is not a priority. This model also features a fold-away chute, which can be used to direct the concrete flow when needed.
£1,289.98 ex VAT
£1,547.98 inc VAT
FCS 2016
Forklift Concrete Skip for use on building or construction sites in areas that have no crane available, these concrete pouring skips can be used with a suitable forklift to transport and pour wet concrete
£768.98 ex VAT
£922.78 inc VAT

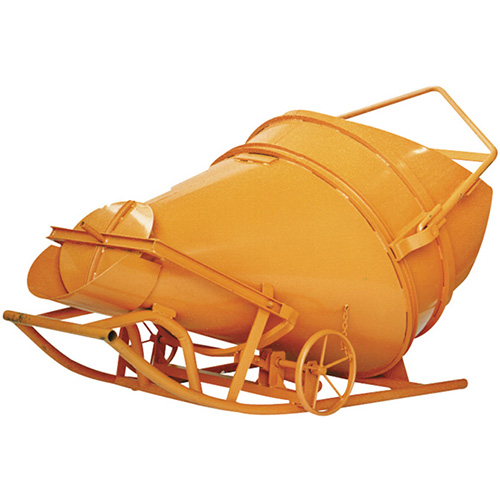

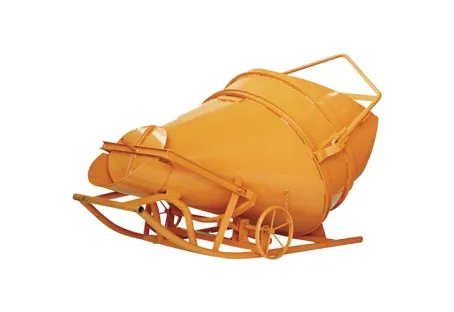

The quality-built CS1025 Eichinger Geared Coneflow Concrete Pouring Skip is a long-standing favourite in groundworks. It is ideal for pouring large volumes of concrete with maximum efficiency. The fitted geared gate mechanism facilitates the rapid flow of concrete, allowing you to fill large areas quickly. Its horizontal, round shape with a lateral outlet gives the skip a rugged, heavy-duty feel, and it connects to a crane or digger via the lifting beam.
Model | Capacity (Ltrs) | SWL (Kgs) | Height (mm) | Width (mm) | Weight (Kgs) |
CS 1025H.8 | 500 | 1200 | 2480 | 1150 | 260 |
CS 1025H.10 | 750 | 1800 | 2540 | 1150 | 360 |
CS 1025H.12 | 1000 | 2400 | 2580 | 1150 | 460 |
CS 1025H.14 | 1500 | 3600 | 3200 | 1400 | 630 |
CS 1025H.18 | 2000 | 4800 | 3400 | 1400 | 870 |
- Horizontal round shape
- Lateral outlet
- Rugged, heavy-duty design
- Available in four sizes
- Ideal for fast-filling concrete
Model | Capacity (Ltrs) | SWL (Kgs) | Height (mm) | Width (mm) | Weight (Kgs) |
CS 1025H.8 | 500 | 1200 | 2480 | 1150 | 260 |
CS 1025H.10 | 750 | 1800 | 2540 | 1150 | 360 |
CS 1025H.12 | 1000 | 2400 | 2580 | 1150 | 460 |
CS 1025H.14 | 1500 | 3600 | 3200 | 1400 | 630 |
CS 1025H.18 | 2000 | 4800 | 3400 | 1400 | 870 |
Eichinger is a renowned brand with a history dating back to 1904 and has been producing building, concrete, and cement equipment since 1946.
Their build quality speaks for itself. Eichinger does not compromise on quality to achieve profit margins, which is why an increasing number of companies are choosing Eichinger to supply equipment for their fleets. By prioritising product quality, businesses can reduce maintenance costs and extend the equipment's lifecycle.
Many companies have adopted a ‘clean fleet’ policy to ensure consistency and transparency across their fleets. Eichinger manufactures everything in-house, meaning they don’t rely on a string of external fabricators supplying slightly different designs of the same equipment. This ensures you know exactly what you’re getting, and you can trust that it will be fit for the job.
