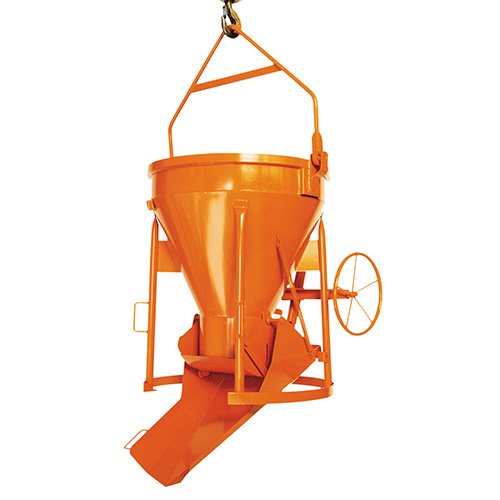

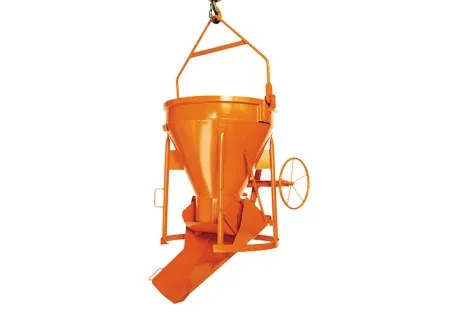

Twinflow Skip Geared CS 1020H
Capacity
500 Litres to 2000Litres
or
1200Kgs to 4800kgs
Description
The CS 1020H Twinflow Skip is a versatile and highly efficient universal pouring skip designed for high-volume concrete pouring. Ideal for projects where precision isn't essential, this skip allows for quick and effective material handling. For added flexibility, it features a fold-away chute that can be deployed to direct the flow of concrete when needed, making it suitable for a range of construction applications.
Related products
CS 1034C
Concrete Column Pouring Skip CS 1034C with Bale Arm is an ultra-versatile skip to aid the pouring of wet concrete into all types of formwork, standard, narrow, and difficult areas, and pouring concrete into columns, walls, and pipe laying work.
£2,096.98 ex VAT
£2,516.38 inc VAT
MS 1224
Circular Muck Skip MS 1224 can transport heavy loads whilst remaining stable due to its safety locking "fingers". This ensures secure transport and protection for the operator. Due to its simple yet effective design, the heavy-duty Circular Muck Skip MS 1224 could be classed as the "original" on-site waste skip.
£279.98 ex VAT
£335.98 inc VAT
CS 1034CE
Ultra Safe Concrete Pouring Skip with lifting points. Column Skip allows concrete to be easily poured into columns and formwork, it also improves safety for the operator as it removes the crushing points of the bale arm, by using a two leg chain slings to lift.
£2,098.98 ex VAT
£2,518.78 inc VAT
CS 1025H
The CS1025 Coneflow Concrete Skip is a long-standing favourite, ideal for pouring large volumes of concrete with maximum efficiency, thanks to its geared gate mechanism.
£1,528.98 ex VAT
£1,834.78 inc VAT
FCS 2016
Forklift Concrete Skip for use on building or construction sites in areas that have no crane available, these concrete pouring skips can be used with a suitable forklift to transport and pour wet concrete
£768.98 ex VAT
£922.78 inc VAT
The Twinflow Concrete Skip with geared control (CS1020H) is a versatile, general-purpose pouring skip designed for efficiently handling high-volume concrete pouring tasks. Ideal for situations where speed is essential, this skip offers a reliable solution for projects where pinpoint accuracy isn't the primary concern.
This model features a foldaway chute, allowing for controlled and precise concrete pouring when needed. Alternatively, it can operate with a standard bottom discharge for quick, bulk pouring. For added flexibility, the Twinflow Concrete Skip is also available with a levered gate mechanism.
Features of the Twinflow Concrete Skip with Geared Control
- Dual-Pouring Functionality: Use the foldaway chute for accurate placement into shuttering or rely on the standard bottom discharge for rapid filling.
- Robust Construction: Designed with a rugged, heavy-duty, cylindrical-conical body and a straight cylindrical outlet for durability and smooth operation.
- Patented Discharge Gate: Operated via a lever mechanism for ease of use and efficient concrete flow control.
Model | Capacity | SWL | Height | Width | Weight |
CS 1020H.8 | 500 Litre | 1200 Kgs | 1460 mm | 1040 mm | 250 Kgs |
CS 1020H.10 | 750 Litre | 2000 Kgs | 1540 mm | 1400 mm | 310 Kgs |
CS 1020H.12 | 1000 Litre | 2400 Kgs | 1690 mm | 1400 mm | 350 Kgs |
CS 1020H.14 | 1500 Litre | 3600 Kgs | 1820 mm | 1600 mm | 460 Kgs |
This universal Eichinger Twinflow Skip CS1020H is engineered for reliability and performance, making it an essential tool for concrete pouring in demanding construction environments.
Carriage Surcharge Information
Please note that a carriage surcharge may apply for deliveries outside the UK mainland, including areas like the Scottish Highlands, Wales, and Northern Ireland. For a tailored delivery quote or further assistance, feel free to contact our sales team at 01384 986 026.
Eichinger CS 1020H Twinflow Concrete Pouring Skip
Model | Capacity | SWL | Height | Width | Weight |
CS 1020H.8 | 500 Litre | 1200 Kgs | 1460 mm | 1040 mm | 250 Kgs |
CS 1020H.10 | 750 Litre | 2000 Kgs | 1540 mm | 1400 mm | 310 Kgs |
CS 1020H.12 | 1000 Litre | 2400 Kgs | 1690 mm | 1400 mm | 350 Kgs |
CS 1020H.14 | 1500 Litre | 3600 Kgs | 1820 mm | 1600 mm | 460 Kgs |
Eichinger is a trusted name in the construction industry, with a legacy dating back to 1904. Since 1946, they have specialized in producing high-quality building, concrete, and cement handling equipment.
Renowned for their exceptional build quality, Eichinger prioritizes durability and performance over profit margins. This commitment to excellence has earned the brand a loyal following among companies seeking reliable equipment that reduces maintenance costs and extends product life cycles.
Many businesses are now adopting a 'clean fleet' policy to ensure consistency and transparency in their operations. Eichinger supports this approach by manufacturing all their equipment in-house. Unlike brands that rely on multiple fabricators producing slightly varied designs, Eichinger guarantees uniformity and precision, so you always know you're getting equipment that delivers results.
Choose Eichinger for dependable, long-lasting solutions tailored to meet the demands of modern construction.
