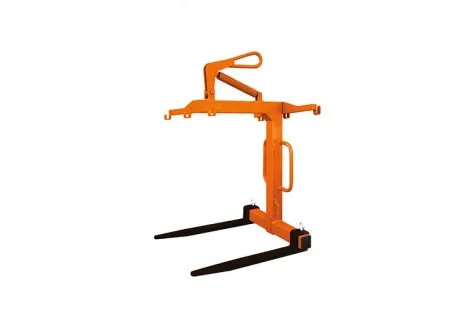

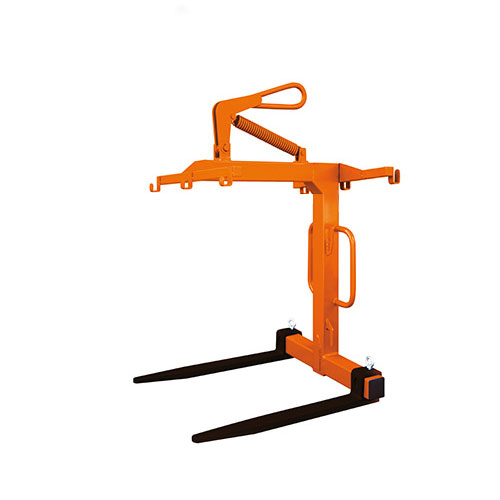

Telescopic Crane Fork CF1056T

Main Features for Telescopic Crane Fork CF1056T.

Automatic Weight Compensation

Ball bearing maintenance-free roller guide in the top section.

Compact Design.

Spring-loaded automatic levelling device.

Adjustable tines.

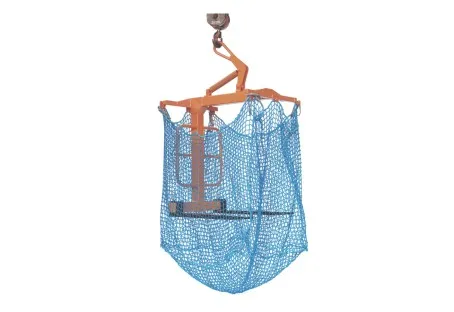

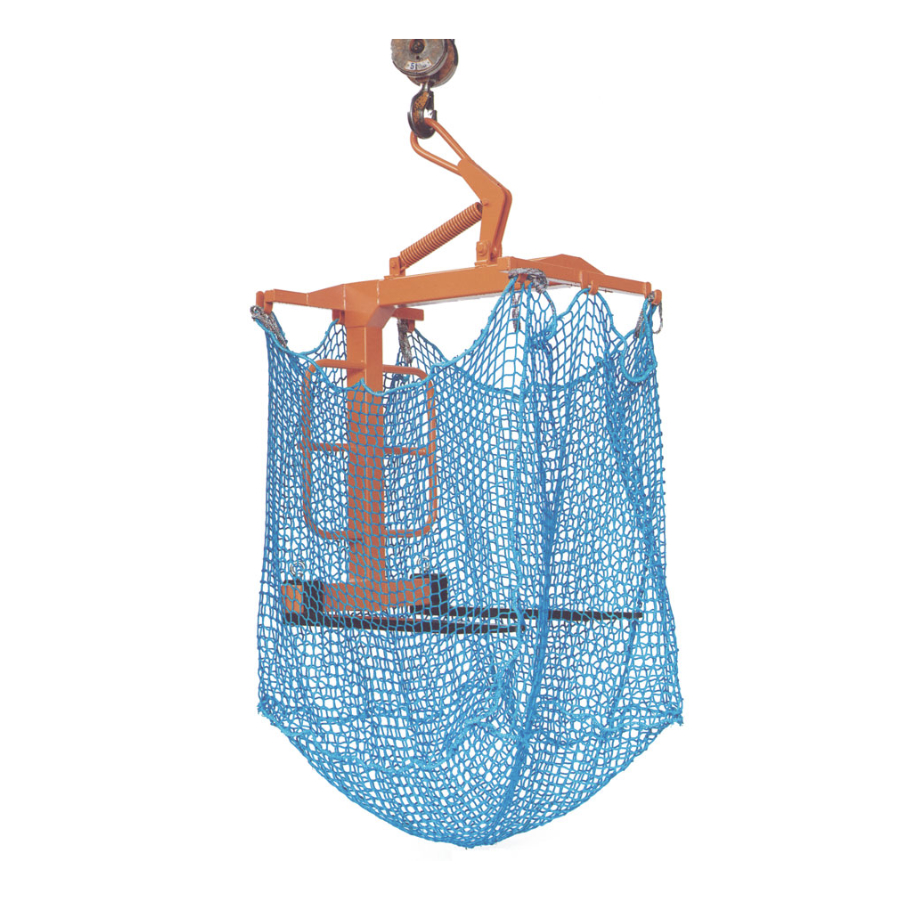

Net Hook - for easily attaching restrain net (CS 0003).

MAINTENANCE of Telescopic Crane Fork CF1056T

The Telescopic Crane Forks should be inspected weekly for the general condition with attention paid to: All weld points, Wear & distortion of thumb screws, Any damaged components, Lock & latches, Pivot points

All bolts must be checked for tightness. The pivot bars must be kept clean and greased.

The spring should be oiled and never let dry out.

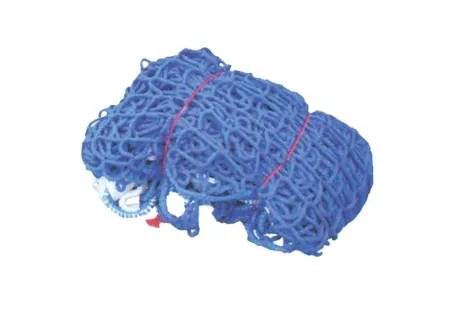

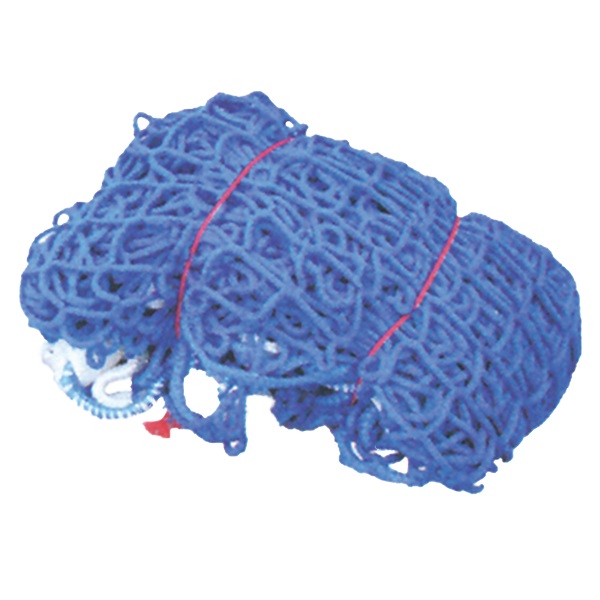

If the restraint net is fitted, check the restraint net for rips or damage and replace it if worn.

Damage or failure must be reported and rectified immediately prior to the re-use of self-balancing Crane Forks.

General surface rusting especially in critical areas should be treated with proprietary inhibitors, primers, and paint on a regular basis.

This product is certified for six (6) months from the date of manufacture after which it is the customer’s responsibility to have the product re-tested by an approved inspection/testing company such as Ultimate Lifting Solutions or inspected and logged in a register by a competent person.

Eichinger is a quality brand with a history that dates back to 1904 and has been producing building, concrete, and cement equipment since 1946

Their build quality speaks for itself, they do not compromise on quality to achieve profit margin, that’s why an increasing number of companies are turning to Eichinger to supply equipment for their fleet, understanding product quality allows them to reduce maintenance costs and increase the equipment life cycle.

Many companies have chosen to adopt a ‘clean fleet’ policy to ensure consistency and transparency within their fleets. Eichinger manufactures everything in-house, we do not have a string of fabricators supplying slightly different designs of the same equipment, this way you know what you’re getting and you know it will be good to get the job done.
