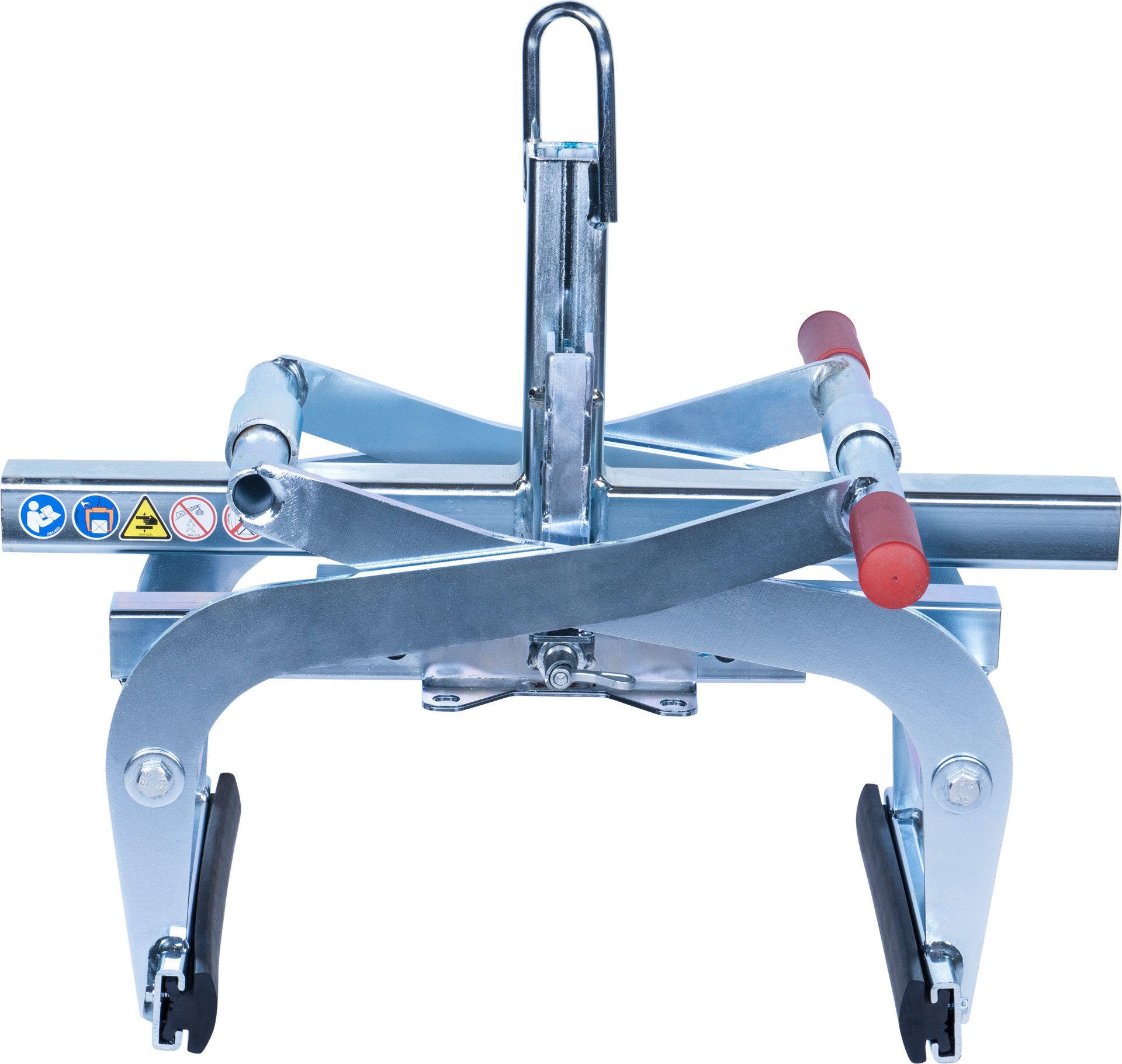

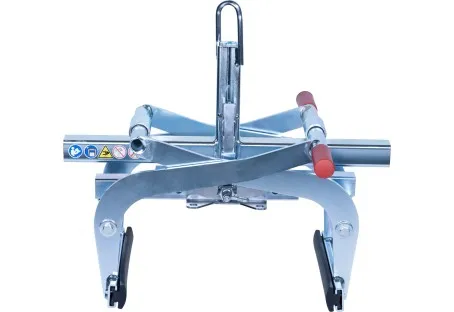

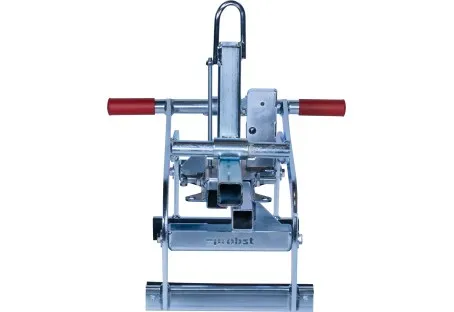

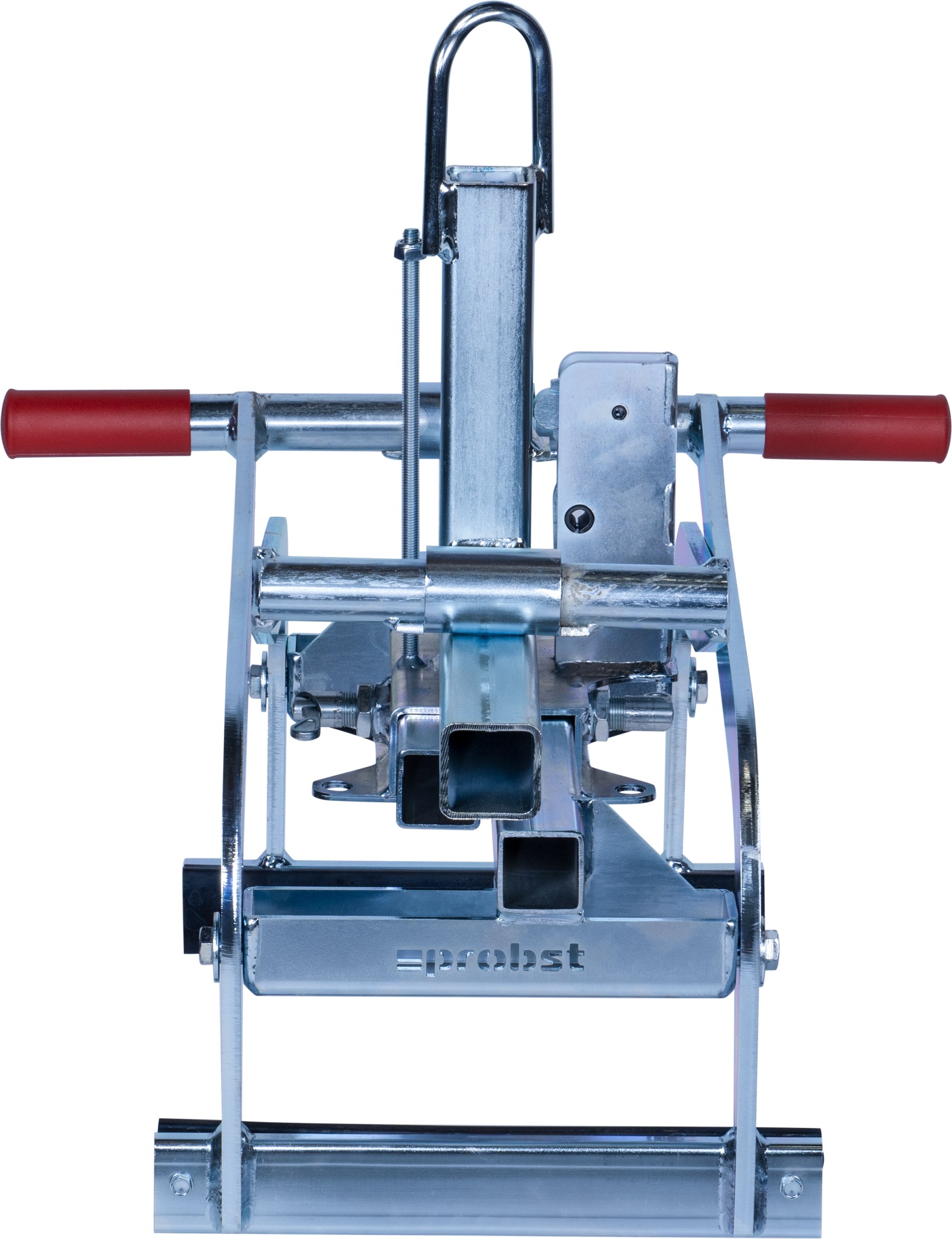

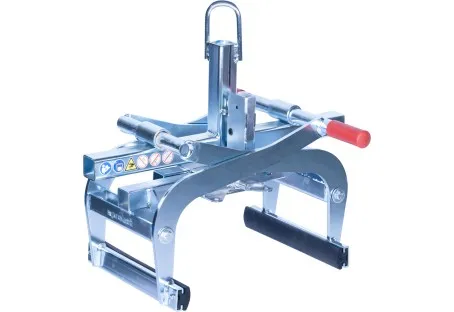

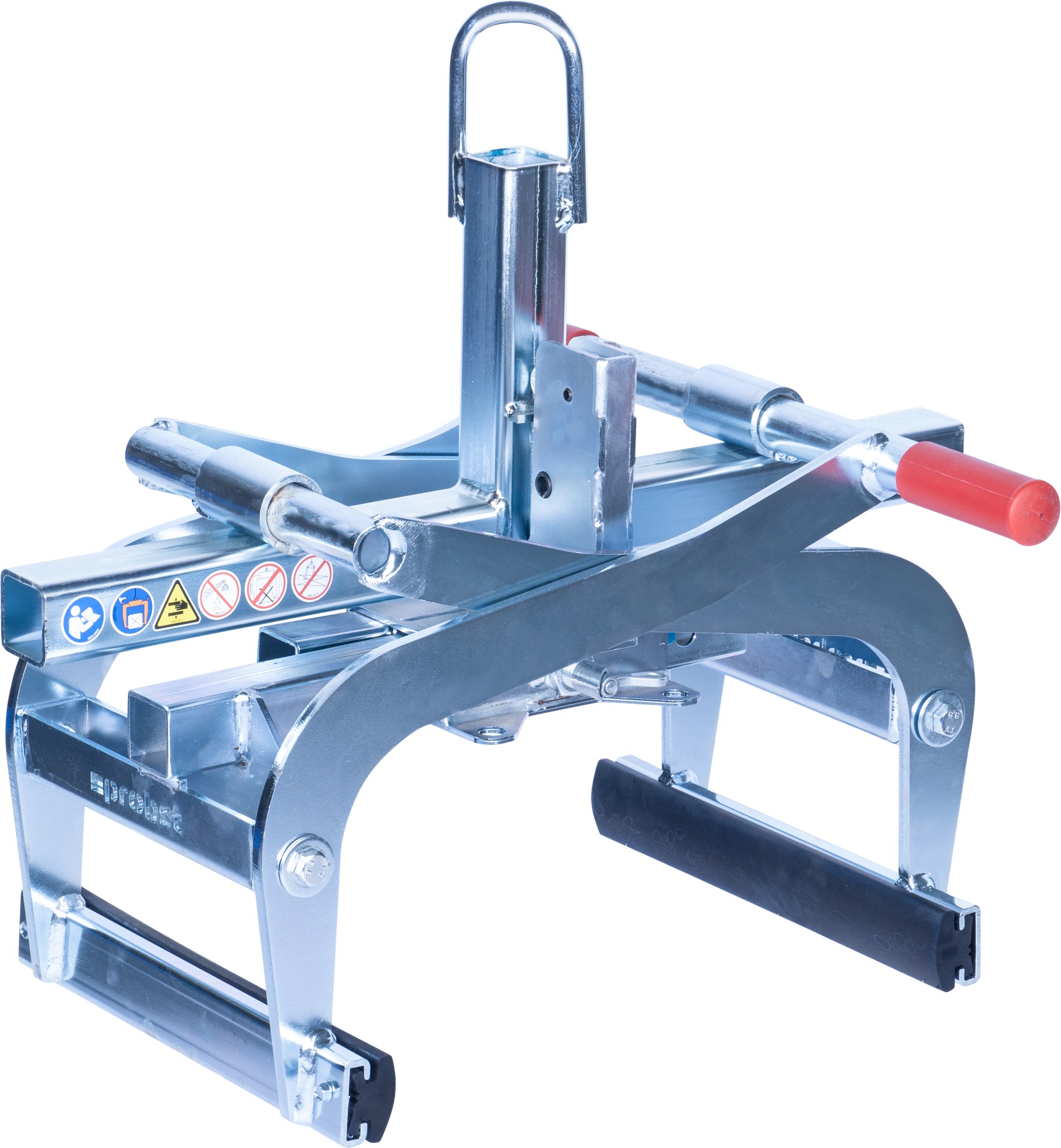

Probst TSZ-UNI Block Gripper

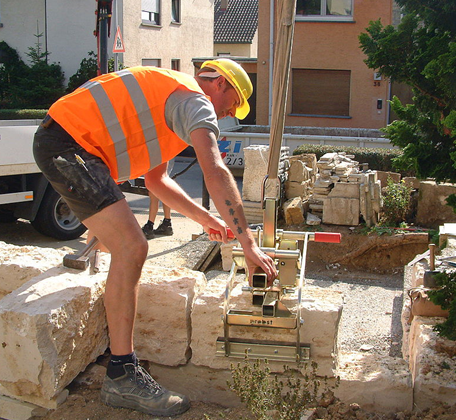

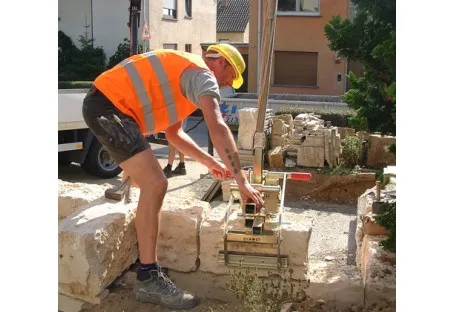

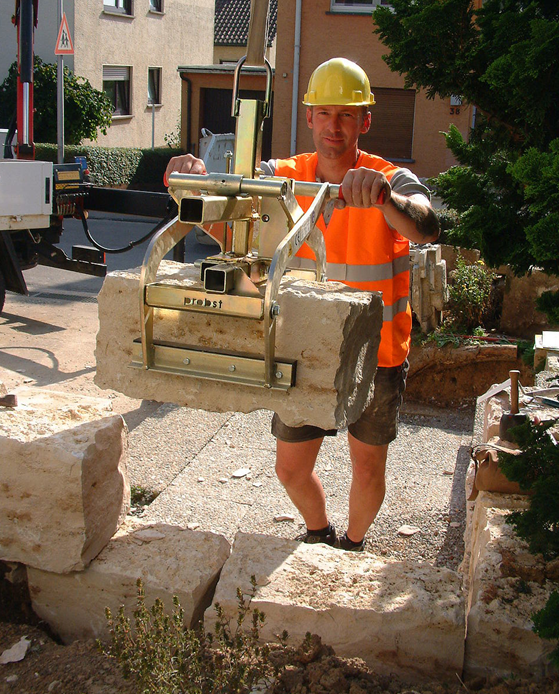

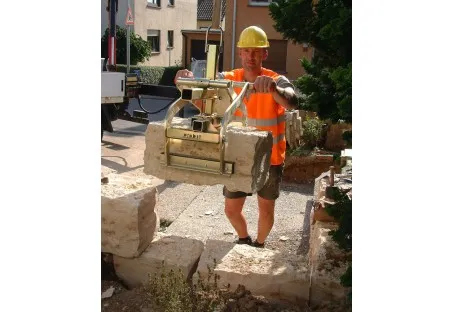

The Probst TSZ Concrete Step Lifter with universal handles is suitable for handling standard Kerb stones, bus stop kerbstones, Kassel kerbs and Trief kerbs as well as other unusual-shaped concrete steps, standard kerb stones, "L" stones and is also ideal on similar larger concrete products. The Probst TSZ-UNI Block Grippers have a large jaw opening range and are commonly used for large stone wall blocks with any width up to 600mm, in fact will lift and transport most landscaping elements of various shapes and sizes.

A big advantage of the Probst Concrete Step Handles TSZ is that they are fitted with an automatic release mechanism, which means the block grab will automatically release its grip once the stone has been laid in position. (Automatic switch over from "full" to "empty").

The Probst TSZ UNI Step Handles is fitted with an easily adjustable jaw opening (via spring-loaded bolt) so the whole unit can be quickly adjusted to suit the block width before lifting. Internal clearance of 185mm means conical kerb stones will be gripped safely and securely underneath the conical form.

These quality German-manufactured units are fitted with hard-wearing yet replaceable rubber grippers. Finished in a galvanized finish for protection against the elements.

Also available are the Probst TSZ-MAXI Concrete Step Handles fitted with jaws rather than rubber grippers for lifting and transporting larger rocks and boulders up to 1100mm

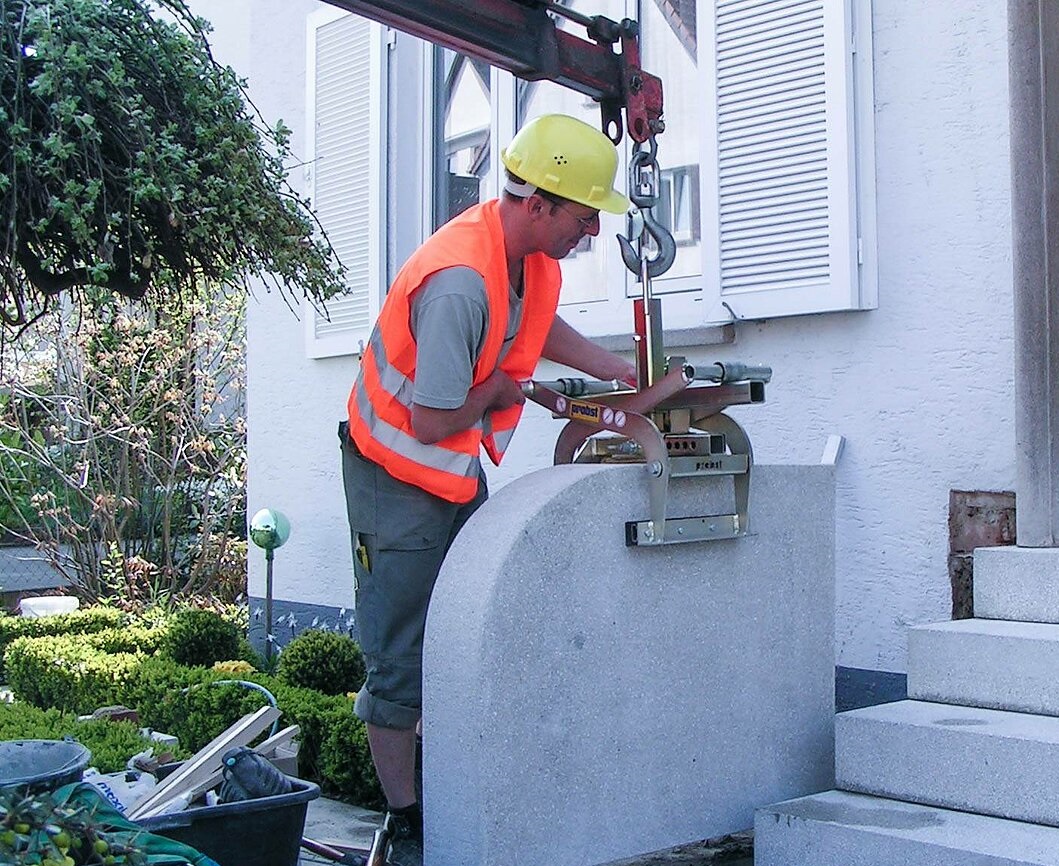

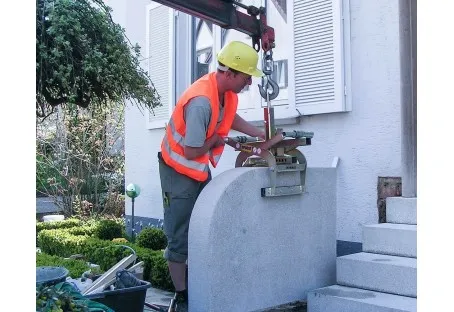

TSZ Concrete Step Handles suitable for handling steps, kerb stones etc. in conjunction with a lifting device.

Accessories available for the Probst TSZ Concrete Step Handles

Adjustable Height Stop. Part Number 43100867. Model HVA-FTZ/TSZ (black)

Supplied in Black Rubber finish.

Adjustable range TSZ-UNI/MAXI approx. 55 – 140 mm (2¼ – 5½ inch).

Further Information

the TSZ UNI Concrete Step Handles

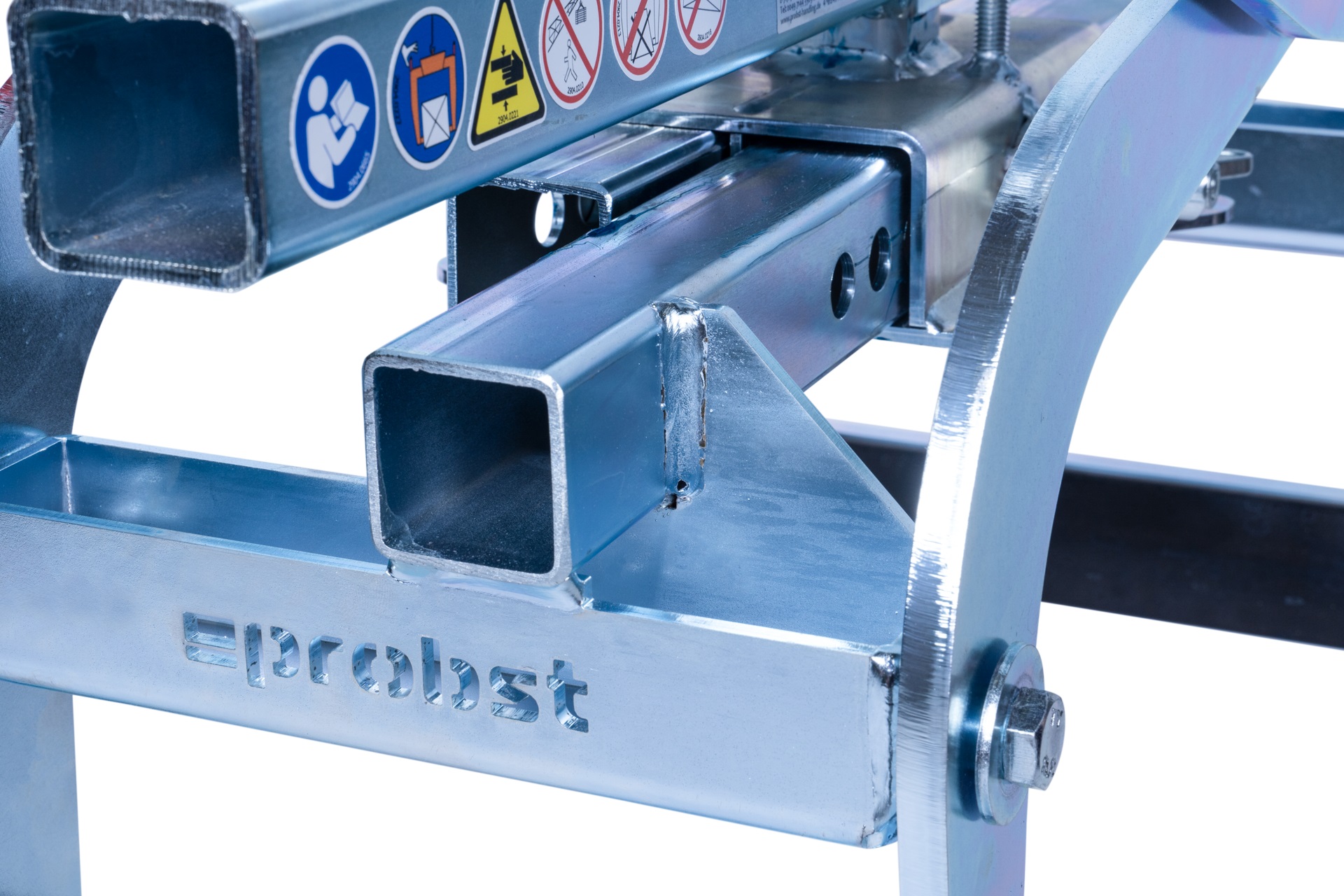

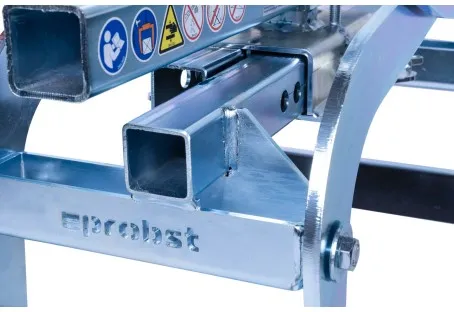

Easily adjustable opening width by means of a spring-loaded bolt.

Considerable inside height. Conical kerb stones are also gripped securely, as the gripper has an inside height of 185 mm (7¼ inch) thus being able to grip underneath the conical form.

Lifting eye for attaching to crane hook.

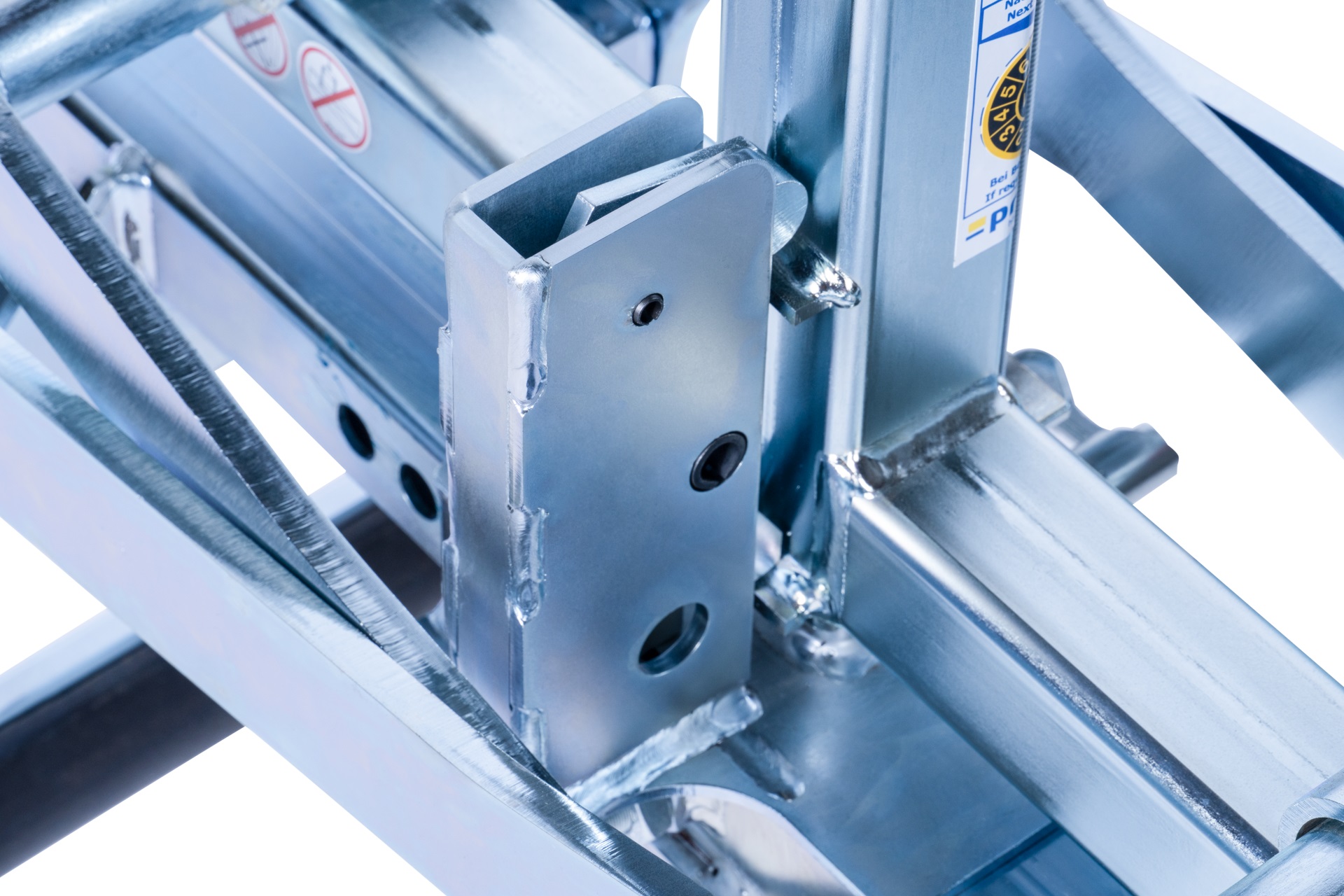

Automatic release for fully automatic switch-over from “full” to “empty”.

Exchangeable profiled rubber seals.

Galvanised finish.
