Big Bag Lifting Frame

Brand:

Capacity

1,000Kgs to 3,000Kgs
(1 tonne - 3 tonne)

Description

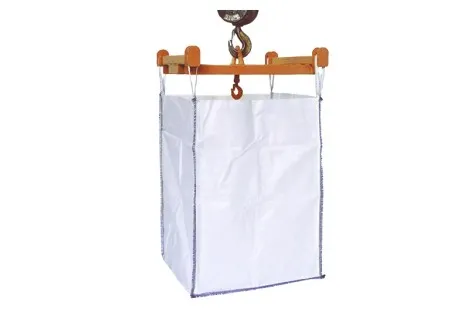

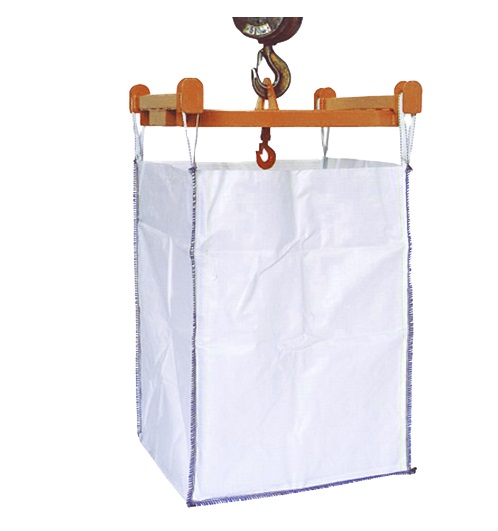

Universal Big Bag Lifting Frame is designed to lift and transport bulk bags safely and securely. It can be used with an overhead Crane, Hiab, or Forklift. Manufactured as a 4-point spreader beam suitable for 1-tonne builder's bulk bags and other oversized bags.

£444.44 ex VAT

£533.33 inc VAT

Add to cart Add to quote

Related products

TTB Camlok Big Bag Lifter

TTB

The Camlok TTB Big Bag Lifter was designed to lift and transport large and bulk bags safely and securely. Loved by builder's yards and on construction sites for relocating 1-tonne bulk bags of gravel or sand and similar goods

£419.58 ex VAT

£394.98 ex VAT

£473.98 inc VAT

Universal 1097 Big Bag Lifting Frame is designed to lift and transport bulk bags safely and securely. It can be used with an overhead Crane, Hiab, or Forklift. Manufactured as a 4-point spreader beam suitable for 1-tonne builder's bulk bags and other oversized bags. Ideal for use at builder's merchants, on construction sites, or around farmyards and factories.

They are designed for quick attachment to Hiab or Over-head Crane via the large fabricated lifting eye fitted to the top of the Big Bag Lifting Frame, and the bags hook over the recessed lifting points fitted to the end of each arm. Once the bag is lifted off the floor, the bag stays in position. It can be transported safely to its following location on or off the back of a delivery wagon, around the farm, etc.

The Big Bag Lifter is also fitted with Fork Lift Pockets and can be used effectively with a Forklift or Tele-Handler.
ModelSWLLengthWidthHeightWeight
BBL 1097.11000 Kgs900 mm900 mm60 mm68 Kgs
BBL 1097.2
1500 Kgs900 mm
900 mm
60 mm
72 Kgs
BBL 1097.3
2000 Kgs900 mm
900 mm
80 mm
84 Kgs
BBL 1097.4
3000 Kgs900 mm
900 mm
80 mm
92 Kgs
It is also fitted with Lower Central Load Hook.

The Universal Big Bag Lifter is designed to safely lift and move loads contained within large heavy-duty bulk bags and similar products. NOTE - Do not drag the load as this will put undue stress on the heel pins when being used with a forklift or on the lifting eye when being used with a Hiab or crane

Specification Big Bag Lifting frame:
Available in four lifting capacities.
Suitable for use with both Forklift and overhead Crane and Hiab.
Manufactured from heavy-duty steel.
It is fitted with a top Lifting Eye and recessed lifting points.
It is supplied and thoroughly tested with certification.

The Eichinger 1097 Universal Big Bag Lifter


Specification Big Bag Lifting Frame:

Available in four lifting capacities.

Suitable for use with both Forklift and overhead Crane and Hiab.

Manufactured from heavy-duty steel.

It is fitted with a top Lifting Eye and recessed lifting points.

It is supplied and thoroughly tested with certification.

ModelSWLLengthWidthHeightWeight
BBL 1097.11000 Kgs900 mm900 mm60 mm68 Kgs
BBL 1097.2
1500 Kgs900 mm
900 mm
60 mm
72 Kgs
BBL 1097.3
2000 Kgs900 mm
900 mm
80 mm
84 Kgs
BBL 1097.4
3000 Kgs900 mm
900 mm
80 mm
92 Kgs
Also fitted with  Lower Central Load Hook.

The Universal Big Bag Lifter is designed to lift and then move loads contained within large heavy-duty bulk bags and similar products in a safe manner. NOTE - Do not drag the load as this will put undue stress on the heel pins when being used with a forklift or on the lifting eye when being used with a Hiab or crane


INSPECTION / SERVICE

According to national and international accident prevention and safety regulations hoisting equipment must be inspected: • in accordance with the risk assessment of the operating company, • prior to initial operation, • before the unit is put into service again following a shutdown • after substantial changes, • however, at least once per year, by a competent person.
