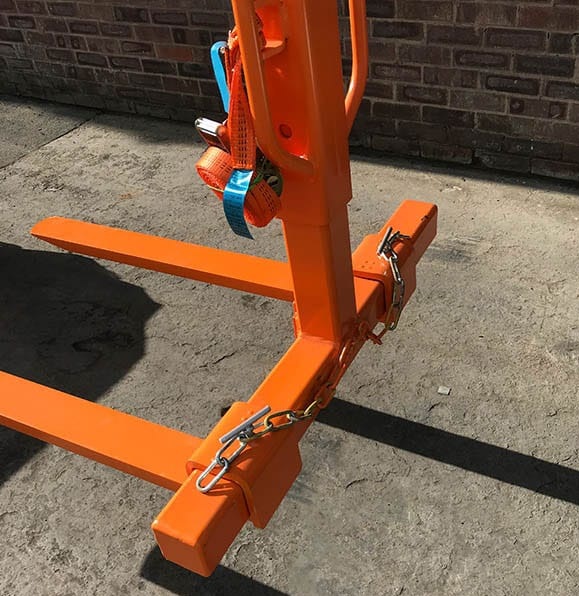

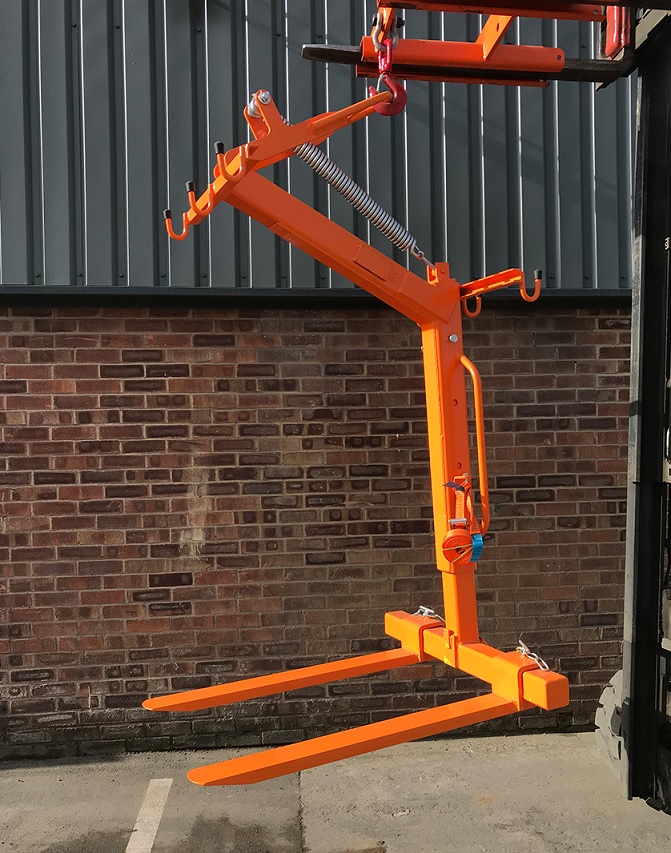

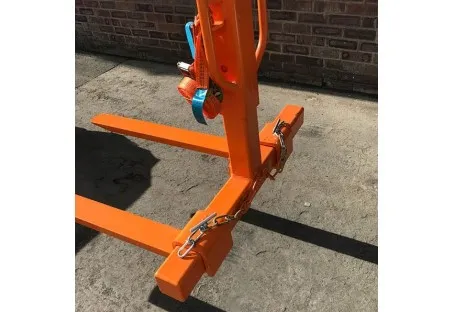

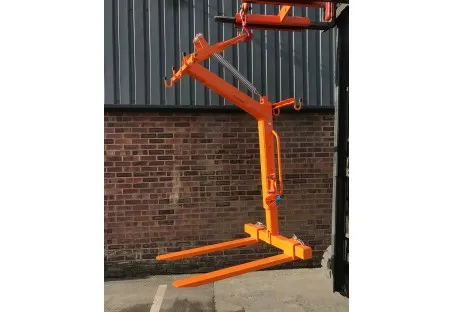

Automatic Pallet Forks
Brand:
Capacity
2000Kgs
Description
The Automatic Pallet Forks effectively convert an overhead crane into a pallet-moving tool. There are many applications where fork trucks cannot be operated due to a lack of floor space for example high rise developments.
Add to cart
Add to quoteRelated products
CY Self Balancing Crane Forks
CY
CY Self Balancing Crane Forks with adjustable fork tines & adjustable height - These crane forks give huge flexibility when required to move pallets or oversized packs of bricks/blocks around a builder's yard or on-site via overhead cranes etc.
£699.98 ex VAT
£839.98 inc VAT
Tigrip Self Weight Balance Crane Forks
TKG
£1,248.11 ex VAT
£1,497.73 inc VAT
Telescopic Crane Fork CF1056T
CF 1056T
£1,549.98 ex VAT
£1,859.98 inc VAT
Crane Pallet Fork Cage
IPF-BOS-CAGE
Quality manufactured Crane Pallet Fork Cage designed to be used with Self Balancing Crane Forks to aid the safe lifting of brick packs, blocks, and other building materials at height, whilst also providing safety for any potential collapsed loads during operation
£1,142.98 ex VAT
£1,371.58 inc VAT
The Automatic Pallet Forks effectively convert an overhead crane into a pallet-moving tool. There are many applications where fork trucks cannot be operated due to a lack of floor space for example high rise developments. These crane forks are equipped with adjustable forks, height adjustable, and an automatic balancing system along with a pre-fitted safety net system (Safety Net - Supplied separately). Can be used in conjunction with the Crane Pallet Fork Cage or
The Automatic Pallet Forks can be bought on its own - Or it can be bought with the Crane Pallet Fork Cage
| Model | Fork Length | Fork Cross Section | Fork Opening Range | Overall Height | Lod Capacity | Weight |
| IPF-BOS-10-20 | 1000mm | 100 x 35mm | 300 to 1000mm | 1800 - 2500mm | 2000Kgs | 170Kgs |
| IPF-BOS-12-20 | 1200mm | 100 x 35mm | 300 to 1000mm | 1800 - 2500mm | 2000Kgs | 190Kgs |
Standard Features
Spring loaded self-balancing head.
Restraint Net Frame
Ratchet strap for load securing
Adjustable Height – Clear Height 1200-1900mm
Adjustable Fork Widths
Convenient Hand Holds.
Optional Features
Crane Pallet Fork Cage
Restraint net.

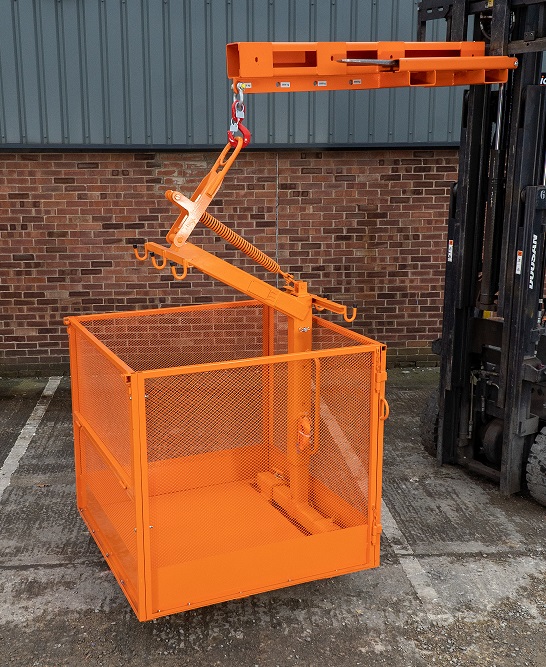

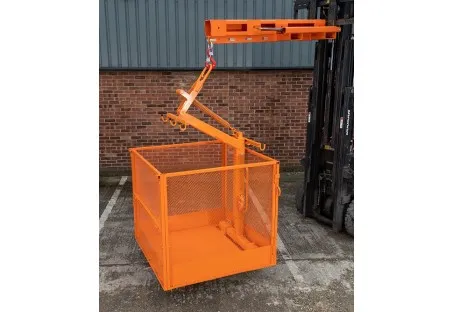

Optional extra - Crane Pallet Fork Cage
Quality manufactured Crane Pallet Fork Cage designed to be used with Self Balancing Crane Forks to aid the safe lifting of brick packs, blocks, and other building materials at height, whilst also providing safety for any potential collapsed loads during operation, which helps to eliminate any risk to the operator's safety. Eliminates dangers of using crane forks with only a safety net.
| Model | Internal Width | Internal Depth | Internal Height | Drop Down Cage Height | Weight |
| IPF-BOS-CAGE | 1340mm | 1140mm | 1200mm | 610mm | 135Kgs |
Standard Features
Cage lifting centres at 635mm.
Hinged back gate opening for Pallet fork entry.
Hinged drop-down front section for ease of manual unloading.
Painted in orange for safety.
Supplied flat pack for ease of storage & transportation.
Automatic Pallet Forks
Model - IPF
Standard Features
Spring-loaded self-balancing head.
Restraint Net Frame
Ratchet strap for load securing
Adjustable Height – Clear Height 1200-1900mm
Adjustable Fork Widths
Convenient Hand Holds.
Optional Features
Crane Pallet Fork Cage
Restraint net.
| Model | Fork Length | Fork Cross Section | Fork Opening Range | Overall Height | Lod Capacity | Weight |
| IPF-BOS-10-20 | 1000mm | 100 x 35mm | 300 to 1000mm | 1800 - 2500mm | 2000Kgs | 170Kgs |
| IPF-BOS-12-20 | 1200mm | 100 x 35mm | 300 to 1000mm | 1800 - 2500mm | 2000Kgs | 190Kgs |
